| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage |

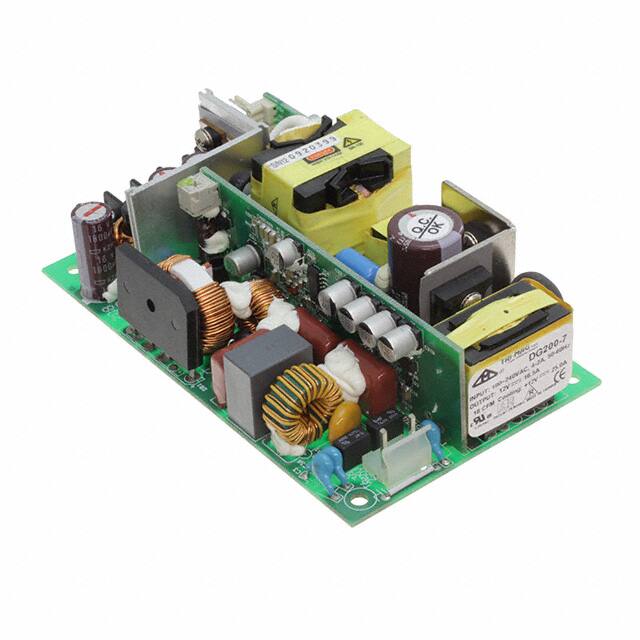

The Tri-Mag, LLC DG200-7 is an open frame AC/DC power supply delivering 200 watts of power with a 12V output voltage. It is designed for ITE (Commercial) applications and features a universal input voltage range of 90-264 VAC.
Key electrical specifications include a typical efficiency of 90%, active Power Factor Correction (PFC), and auto-recovery for overload and short circuit protection. The unit offers a 4 kV isolation rating between input and output.
Mechanically, this power supply has dimensions of 127.0mm x 76.2mm x 36.1mm (5.00" x 3.00" x 1.42") and is designed for chassis mounting. It operates within a temperature range of -20°C to 65°C and is cooled via free air convection, with an option for forced air cooling to achieve up to 300W.
Compliance includes CB and CE certifications. The DG200-7 is suitable for various commercial and industrial applications requiring a reliable open-frame power solution.
The DG200-7 provides a single 12V output at 16.5A.
The input voltage range is 90 VAC to 264 VAC at 47 Hz to 63 Hz.
The DG200-7 is rated at 200W with free air convection cooling and 300W with 18CFM forced air.
The operating temperature range is -20°C to 65°C, with derating above 50°C.
The DG200-7 includes overvoltage protection with latch-off, and overload and short circuit protection with auto recovery.
The isolation rating is 4000VAC between input and output.
The typical efficiency is greater than 90% at rated load.
