| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

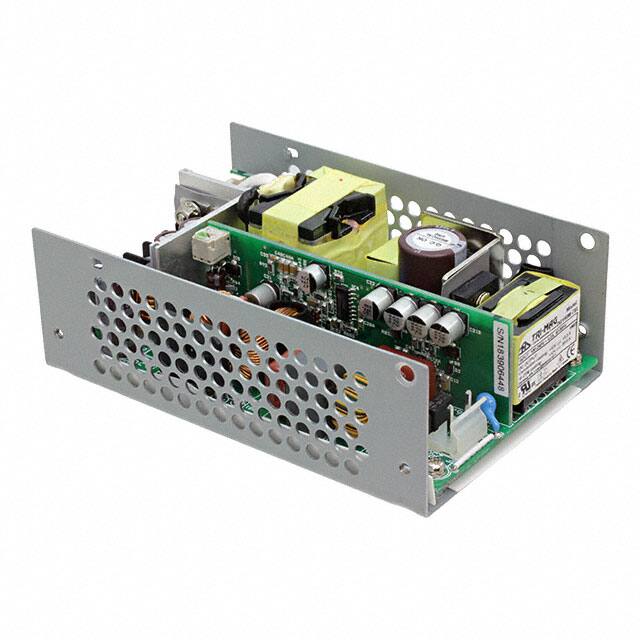

The Tri-Mag DG160M-7EU is a 160 Watt open frame AC/DC power supply designed for both ITE and Medical applications. It provides a 12V output and features a compact size of 5.00" x 3.00" x 1.42".
Key electrical specifications include a universal input voltage range of 90-264 VAC, 90% typical efficiency, and active Power Factor Correction (PFC). The unit supports 160W output via free air convection cooling and can deliver up to 240W with forced air cooling. It offers robust protection features including overvoltage, overload, and short circuit protection.
This series is approved for 2xMOPP applications and meets stringent safety standards such as UL/CSA/EN 60950-1 (2nd edition) for ITE and ANSI/AMMI/CSA/EN 60601-1 (3rd edition) for Medical use. It also complies with EMC standards including EN55022 Class B and EN 61000-3-2 Class D.
The DG160M-7EU operates within an ambient temperature range of -20°C to 65°C and is suitable for chassis mounting. It is available in U-Frame or enclosed versions.
90 VAC to 264 VAC.
-20°C to 65°C (with derating above 50°C).
Open frame, chassis mount.
12V output at up to 13.3A.
90% typical.
UL/CSA/EN 60950-1 (ITE), ANSI/AAMI/CSA/EN 60601-1 (Medical), CE Mark and CB report.
Greater than 0.9.
