| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage |

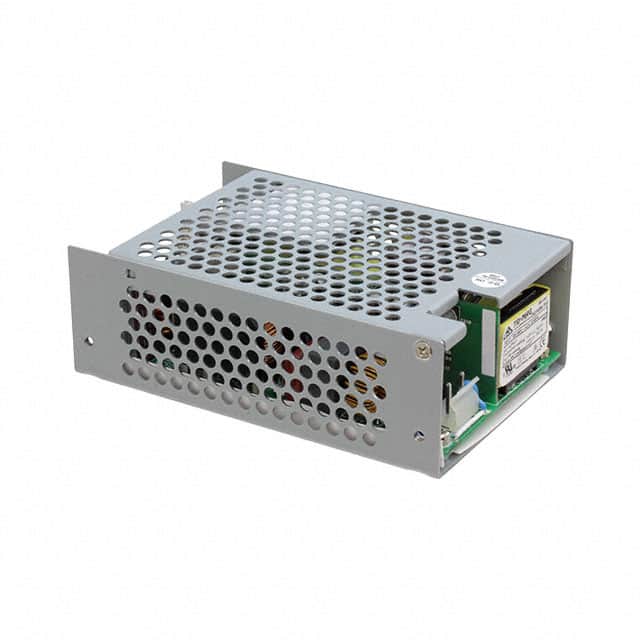

The Tri-Mag DG160M-7EC is an enclosed AC/DC converter designed for medical applications. It provides 160W of power with a 12V output voltage and operates with an efficiency of 90% typical.
This converter features built-in active PFC, standby output, and universal input capabilities, accepting a wide input voltage range from 90 VAC to 264 VAC. It is rated for 160W free air convection cooling and up to 240W with forced air. The unit measures 5.00" L x 3.00" W x 1.42" H and is designed for chassis mounting.
Compliance includes UL/CSA/EN 60950-1 (ITE) and ANSI/AMMI/CSA/EN 60601-1 (Medical) standards. It also meets harmonic current requirements per EN 61000-3-2 Class D and EMI standards per EN55022 Class B. The DG160M-7EC offers robust protection features including overvoltage, overload, and short circuit protection with auto recovery.
With a 10-year manufacturer's warranty, this power supply is suitable for demanding applications requiring reliable and safe power conversion.
The DG160M-7EC provides a single 12V output at 13.3A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 65°C with derating above 50°C.
It is approved to UL/CSA/EN 60950-1 (ITE) and ANSI/AAMI/CSA/EN 60601-1 (Medical) standards.
The typical efficiency is 90% at rated load.
It includes overvoltage protection (latch off), overload protection (auto recovery), and short circuit protection (auto recovery).
It measures 127.0mm x 76.2mm x 36.1mm and is designed for chassis mount.
