| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

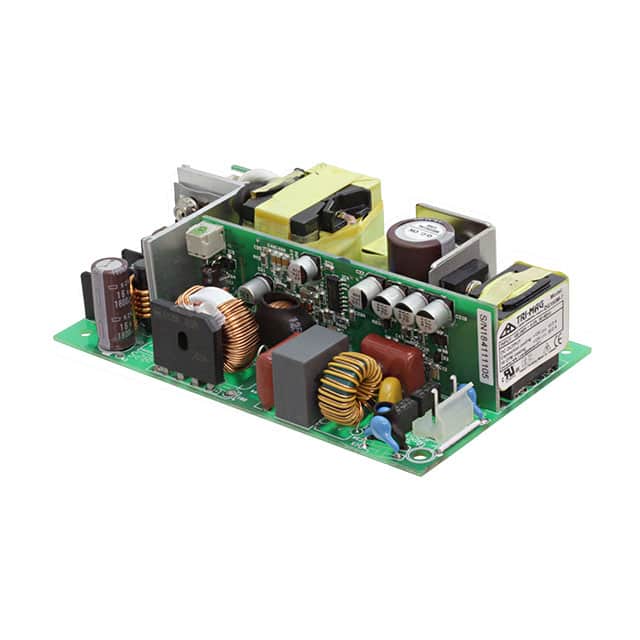

The Tri-Mag, LLC DG160M-7 is a 160-watt open frame AC/DC power supply suitable for medical applications. It operates with universal input voltage from 90 VAC to 264 VAC and features built-in active Power Factor Correction (PFC).
This converter offers an efficiency of 90% typical and operates within a temperature range of -20°C to 65°C. It provides 4000 VAC isolation between input and output, meeting 2xMOPP requirements, and 1500 VAC/VDC isolation to ground. The unit is designed for chassis mounting and includes features like standby output and auto-recovery for overload and short circuit protection.
Compliance includes UL/CSA/EN 60950-1 for ITE and EN 60601-1 for medical applications, along with CE Mark and CB report. The DG160M-7 comes with a 10-year manufacturer's warranty, making it a reliable choice for demanding medical equipment designs.
The operating temperature range is -20°C to 65°C, with derating applied above 50°C.
The DG160M-7 is approved under UL/CSA/EN 60950-1 (2nd edition) for ITE and ANSI/AMMI/CSA/EN 60601-1 (3rd edition) for Medical applications, and carries a CE Mark with a CB report.
The typical efficiency is 90%.
The manufacturer's warranty is 10 years.
The dimensions are 127.0mm (Length) x 76.2mm (Width) x 36.1mm (Height).
Yes, it features latch-off overvoltage protection.
The maximum input current at 115 VAC is 4A.
