| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

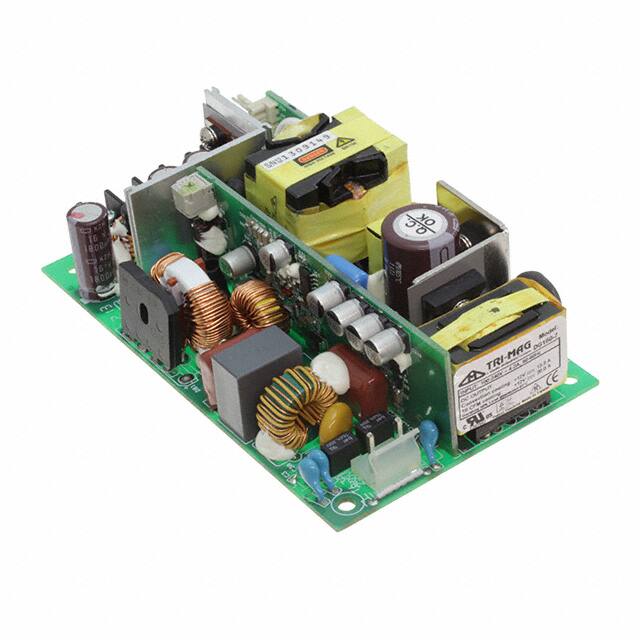

The Tri-Mag, LLC DG160-7 is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It provides a 160W output at free air convection cooling, expandable to 240W with forced air.
Key electrical specifications include a universal input voltage range of 90-264 VAC and a typical efficiency of 91%. The power supply features built-in active PFC, overvoltage protection, overload protection, and short circuit protection with auto recovery. It is designed for chassis mounting.
Environmental considerations include an operating temperature range of -20°C to 65°C (with derating above 50°C) and compliance with various EMC and safety standards such as EN 60950-1 and EN 60601-1. The unit offers 4000 VAC isolation from input to output.
This series is compliant with Energy Star Level VI and ErP EC 1275/2008 standards, indicating energy efficiency. It comes with a 10-year manufacturer's warranty.
90-264 VAC (nominal 115/230 VAC).
12V at 13.3A maximum.
-20°C to 65°C with derating above 50°C.
160W with free air convection, 240W with forced air (18 CFM).
127.0 x 76.2 x 36.1 mm (5.00 x 3.00 x 1.42 inches), chassis mount open frame.
91% typical.
UL/CSA/EN 60950-1 (ITE) and ANSI/AAMI/CSA/EN 60601-1 (Medical) 3rd edition, 2xMOPP, CE Mark, CB report.
