| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,027 pcs
|
2027 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current Rating | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Voltage Rating |

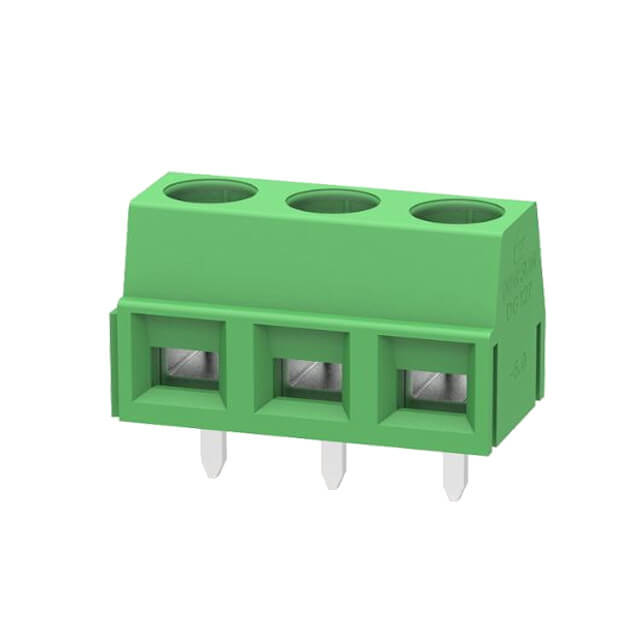

The Degson DG127-5.0-03P-14-00AH is a PCB terminal block designed for reliable electrical connections. It features a 5mm pin pitch and accommodates 3 positions, making it suitable for various wiring applications.
This terminal block operates with a current rating of 12A and a voltage rating of 300V, ensuring robust performance in demanding environments. The THT (Through-Hole Technology) mounting type allows for secure and permanent installation on printed circuit boards. The housing is constructed from PA66+UL94V-0 material, providing durability and flame resistance, while the pins are made of copper alloy with tin plating for optimal conductivity.
With a wire entry angle of 180 degrees and a profile height of 10mm, the DG127-5.0-03P-14-00AH offers practical design considerations for PCB layout. It supports wire gauges from 26 to 14 AWG (0.5mm² to 1.5mm²), offering flexibility in wire selection. The operating temperature range is from -40°C to +105°C, suitable for a wide array of industrial and electronic applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
5 mm.
12 A.
300 V.
THT (Through-Hole Technology).
26-14 AWG (1.5 mm²).
-40°C to +105°C.
