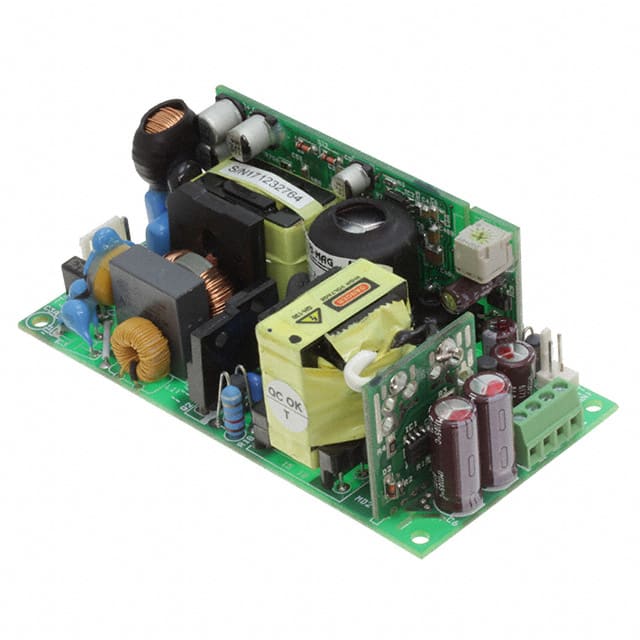

The Tri-Mag, LLC DG120-7 is a 120 Watt open frame AC/DC power supply designed for ITE (Commercial) applications. It operates from a universal input voltage range of 90 VAC to 264 VAC and provides a single 12V output.
Key electrical specifications include a maximum output current of 10A, delivering up to 120W in free air convection or 150W with forced air. The converter boasts a typical efficiency of 90% and features built-in active Power Factor Correction (PFC). It offers line regulation of ±0.5% and load regulation of ±1.0%.
Designed for reliability, the DG120-7 operates within an ambient temperature range of -20°C to 70°C with derating above 45°C. It includes essential protections such as overvoltage, overload, and short circuit protection with auto recovery. The unit is safety approved by CB and CE standards.
This open frame power supply is chassis mounted and has dimensions of 101.6mm x 50.8mm x 32.5mm. It is compliant with RoHS3 standards and has an MSL rating of 1.
The DG120-7 has an output voltage of 12V.
The maximum output current for the DG120-7 is 10A.
The DG120-7 is rated at 120W free air convection and up to 150W with forced air.
The typical efficiency of the DG120-7 is 90%.
The DG120-7 operates from -20°C to 70°C.
The DG120-7 has CB and CE approval agency certifications.
The dimensions of the DG120-7 are 101.6mm x 50.8mm x 32.5mm.
