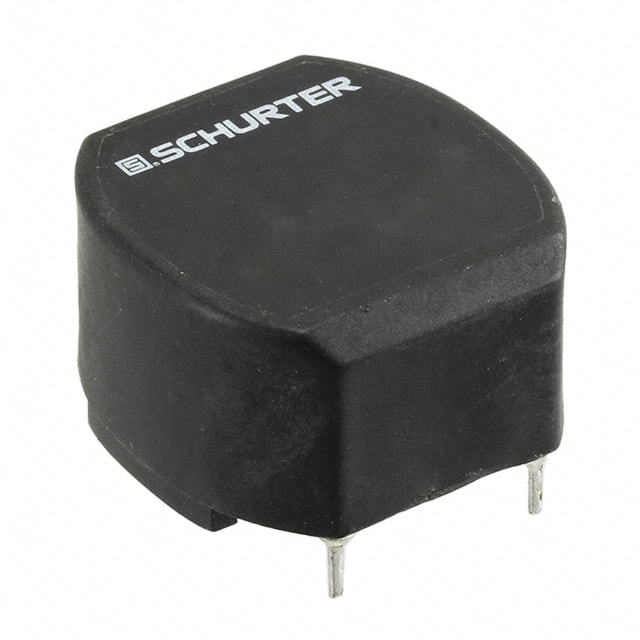

DFKF-28-0006 Schurter DFKF-28-0006 is a 2-line common mode choke rated for 6.3A and 440VAC. It features a through-hole radial package with 4 leads and a DCR of 13mOhm.
Mfr Part #:

DFKF-28-0006

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Schurter DFKF-28-0006 is a 2-line common mode choke rated for 6.3A and 440VAC. It features a through-hole radial package with 4 leads and a DCR of 13mOhm.
✓ Total Stock: 120 pcs
$ Price Range: $3.33 - $6.04

DFKF-28-0006 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DFKF-28-0006 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

DFKF-28-0006 Description

Short technical summary and product information.

The Schurter DFKF-28-0006 is a magnetically compensated, 1-phase common mode choke from the DFKF series. It is designed to attenuate common mode interferences in AC power applications up to 440VAC.



Key electrical specifications include a maximum current rating of 6.3A, a maximum DC resistance of 13mOhm, and an operating frequency of 50/60 Hz. The component is rated for an isolation voltage of 2kV from winding to ambient and a test voltage of 1.8kV between windings.



The choke is housed in a radial package with 4 through-hole terminals (THT) and measures 28.3mm by 27.4mm. It operates over a temperature range of -25°C to 100°C and uses a UL 94V-0 rated sealing compound. The part is RoHS3 compliant.

DFKF-28-0006 Quick Information

Product Type: Common Mode Choke
Series: DFKF
Canonical Name: Schurter DFKF Series Common Mode Choke, 6.3A, 440VAC, Through Hole
Subcategory: Current Compensated Choke

DFKF-28-0006 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DFKF-28-0006 Estimated Pricing

Qty Low High
1+ $6.04 $6.04
10+ $4.97 $4.97
40+ $4.41 $4.41
80+ $4.16 $4.16
120+ $4.02 $4.02
280+ $3.74 $3.74
520+ $3.55 $3.55
1,000+ $3.36 $3.36
2,520+ $3.33 $3.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

DFKF-28-0006 Features

  • Rated current of 6.3A at 40°C.
  • Maximum DC resistance of 13mOhm.
  • Rated voltage up to 440VAC.
  • Through-hole radial package with 4 leads.
  • RoHS3 compliant and UL 94V-0 rated.

DFKF-28-0006 Applications

  • Attenuates common mode interference in power lines.
  • Suitable for 230/400VAC industrial applications.
  • Used in switching power supplies and DC drives.
  • Ideal for stepper motor control circuits.

DFKF-28-0006 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum current rating of the DFKF-28-0006?

The maximum current rating is 6.3A at 40°C ambient temperature.

What is the voltage rating of this common mode choke?

The rated voltage is 440VAC.

What is the operating temperature range?

The operating temperature range is -25°C to 100°C.

What is the package type and mounting style?

The package is Radial - 4 Leads with through-hole mounting (THT).

Is the DFKF-28-0006 RoHS compliant?

Yes, it is RoHS3 compliant as confirmed by the datasheet.

What is the DC resistance of this choke?

The maximum DC resistance is 13mOhm.

What is the isolation voltage?

The isolation voltage is 2kV from winding to ambient.
