| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45,000 pcs
|
45000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,597 pcs
|
2597 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

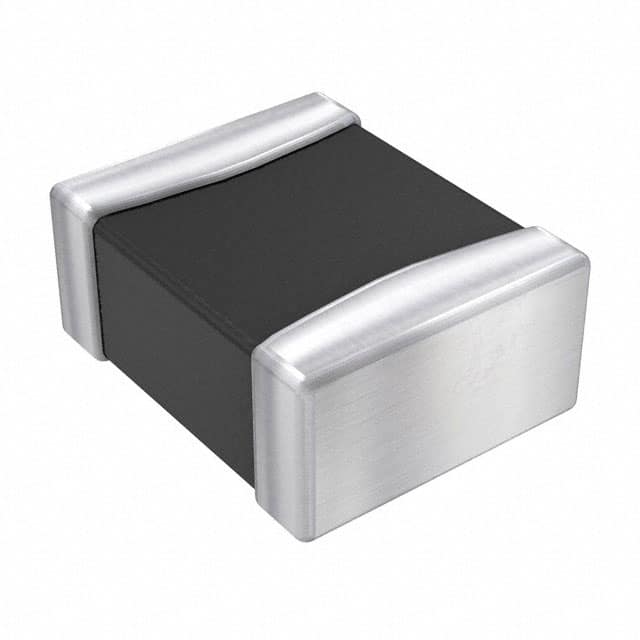

The Murata DFE201610P-2R2M=P2 is a shielded wirewound fixed inductor from the DFE201610P series. It offers a nominal inductance of 2.2 µH with ±20% tolerance, rated for a continuous current of 2 A. The maximum DC resistance is 168 mOhm, with a typical value of 140 mOhm. The inductor is constructed with an iron powder core and features a closed magnetic circuit design for effective shielding, reducing audible core noise. It is supplied in a surface mount 0806 (2016 Metric) package with a maximum height of 1.00 mm, suitable for low-profile applications. The operating temperature range is -40°C to 125°C. Additional datasheet ratings include a saturation current of 2.0 A (ΔL/L=30%) and a temperature rise current of 1.4 A (ΔT=40°C). This inductor is designed for reflow soldering and is commonly used in DC-DC converters, power management circuits, and portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
| 10+ | $0.18 | $0.18 |
| 100+ | $0.15 | $0.15 |
| 1,000+ | $0.12 | $0.12 |
| 3,000+ | $0.11 | $0.11 |
| 6,000+ | $0.10 | $0.10 |
| 9,000+ | $0.10 | $0.10 |
| 15,000+ | $0.10 | $0.10 |
| 21,000+ | $0.09 | $0.09 |
| 30,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 2.2 µH with a tolerance of ±20%.
The rated current is 2 A.
The maximum DC resistance is 168 mOhm, with a typical value of 140 mOhm.
The inductor is supplied in a surface mount 0806 (2016 Metric) package.
Yes, the inductor is shielded to reduce electromagnetic interference.
The saturation current is 2.0 A at a 30% inductance reduction (ΔL/L=30%).
The operating temperature range is -40°C to 125°C.
