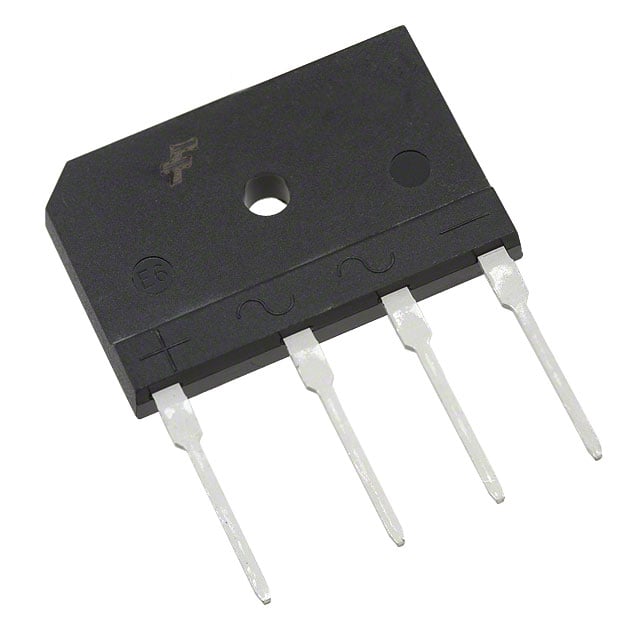

DFB2520 The DFB2520 is a single phase bridge rectifier from onsemi with a maximum recurrent peak reverse voltage of 200V and an average forward rectified current of 25A. It is housed in a TS-6P through-hole package and is RoHS compliant.
Mfr Part #:

DFB2520

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The DFB2520 is a single phase bridge rectifier from onsemi with a maximum recurrent peak reverse voltage of 200V and an average forward rectified current of 25A. It is housed in a TS-6P through-hole package and is RoHS compliant.
✓ Total Stock: 3,595 pcs

DFB2520 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,595 pcs
On Request
3595 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DFB2520 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Operating Temperature Range
Peak Forward Surge Current
Supplier Device Package
Technology
Termination Style
Thermal Resistance
Voltage
View Similar Products (0)

DFB2520 Description

Short technical summary and product information.

The DFB2520 is a glass-passivated single phase bridge rectifier designed for printed circuit board mounting. It features a standard technology junction and is rated for a maximum recurrent peak reverse voltage (VRRM) of 200V and an average forward rectified current (I(AV)) of 25A. The device can handle a peak forward surge current (IFSM) of 350A and has an I2t rating of 508 A2s.



Typical forward voltage is 1.0V at 12.5A and 1.1V at 25A. Reverse leakage current is typically 10 µA at 25°C and 500 µA at 125°C. The junction capacitance per leg is 110 pF. The operating temperature range is -55°C to 150°C.



The DFB2520 is supplied in a TS-6P (4-SIP) through-hole package with screw termination. The case dielectric strength is 2500 VRMS and the isolated voltage from case to lead is greater than 2500V. The maximum screw torque is 8.17 in-lbs. The device is Pb-Free and RoHS compliant.

DFB2520 Quick Information

Product Type: Bridge Rectifier
Series: DFB25
Canonical Name: DFB2520 Single Phase Bridge Rectifier
Subcategory: Single Phase Bridge Rectifier

DFB2520 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

DFB2520 Features

  • Single phase bridge rectifier, 200V VRRM.
  • Average forward rectified current of 25A.
  • Peak forward surge current rating of 350A.
  • Glass-passivated junction for reliability.
  • RoHS compliant and Pb-Free.

DFB2520 Applications

  • General purpose AC-to-DC bridge rectification.
  • Power supply input rectification.
  • Industrial equipment power conversion.
  • Printed circuit board mounting applications.

DFB2520 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum recurrent peak reverse voltage (VRRM) of the DFB2520?

The maximum recurrent peak reverse voltage (VRRM) is 200V.

What is the average forward rectified current rating of the DFB2520?

The average forward rectified current (I(AV)) is 25A.

What is the typical forward voltage of the DFB2520?

The typical forward voltage is 1.0V at 12.5A and 1.1V at 25A.

What package does the DFB2520 come in?

The DFB2520 is available in a TS-6P (4-SIP) through-hole package.

What is the operating temperature range of the DFB2520?

The operating temperature range (TJ) is -55°C to 150°C.

Is the DFB2520 RoHS compliant?

Yes, the DFB2520 is RoHS3 compliant and Pb-Free.
