| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
851 pcs
|
851 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

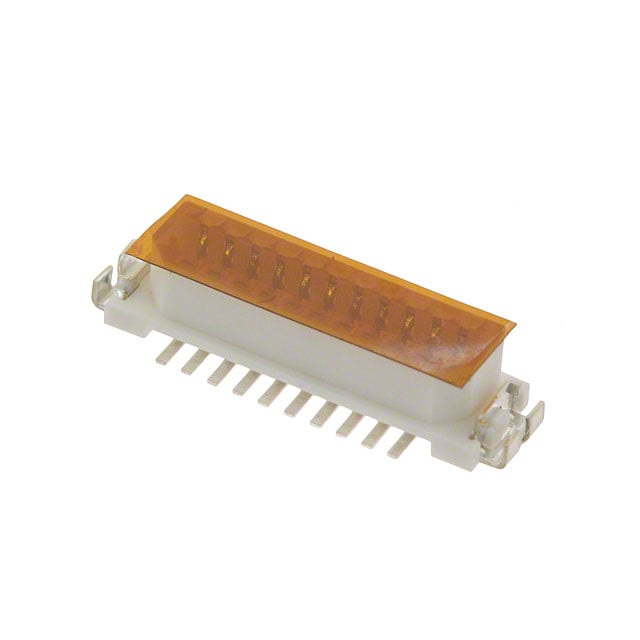

The DF9B-21P-1V(69) is a 21-position header connector from Hirose Electric, part of the DF9B series. It features a center strip contact arrangement with 2 rows at a 1.00mm pitch, making it suitable for board-to-board stacking applications.
The connector is surface mount (SMD) with a height above board of 0.130 inches (3.30mm) and a mated stacking height of 4.3mm. Contacts are gold-plated with a thickness of 8.00µin (0.203µm), ensuring reliable conductivity. The design includes solder retention for secure mounting.
The DF9B-21P-1V(69) is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is designed for use in mezzanine or board-to-board configurations where space is limited.
21 positions arranged in 2 rows.
1.00mm.
Surface mount (SMD).
Gold, with a thickness of 8.00µin (0.203µm).
4.3mm.
RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited).
Solder retention for secure mounting.
