| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Height Above Board | |
| Insulation Resistance | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Material - Insulator | |
| Material Contact | |
| Mating Cycles (Tin Plating) | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Humidity Range | |
| Operating Temperature Range | |
| Pitch | |
| Storage Humidity Range | |
| Storage Temperature Range | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

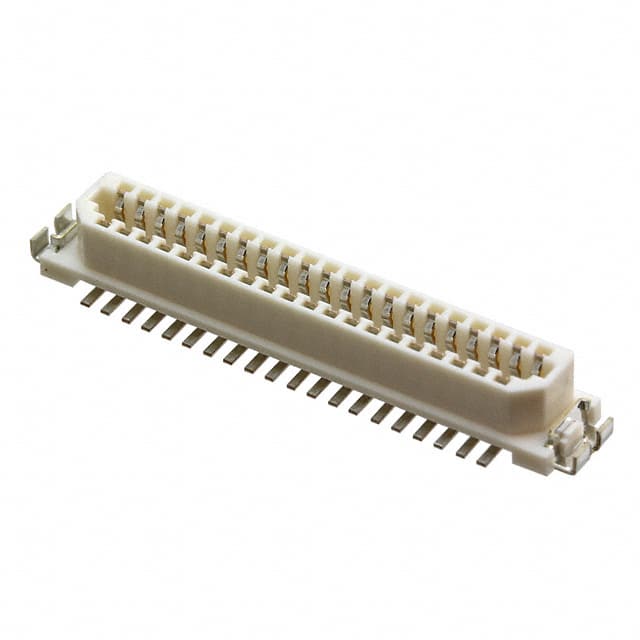

The Hirose Electric DF9-41S-1V(32) is a 41 position, 1.00mm pitch, 2 row surface mount receptacle from the DF9 series. It features outer shroud contacts and is designed for board to board stacking applications with a mated stacking height of 4.3mm. The connector includes board guide and solder retention features for reliable assembly.
Electrical ratings include a current rating of 0.5A per contact, voltage rating of 150V AC, maximum contact resistance of 50mΩ, and minimum insulation resistance of 500MΩ. The operating temperature range is -45 to +125°C, making it suitable for a wide range of environments.
The insulator is made of polyamide with a UL94 V-0 flammability rating. Contacts are phosphor copper with tin plating (1.00µm thickness). The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
The pitch is 1.00mm.
It has 41 positions.
The current rating is 0.5A per contact.
The voltage rating is 150V AC.
It uses surface mount (SMD) mounting.
The operating temperature range is -45 to +125°C.
Yes, it is RoHS3 compliant.
