| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
551 pcs
|
551 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

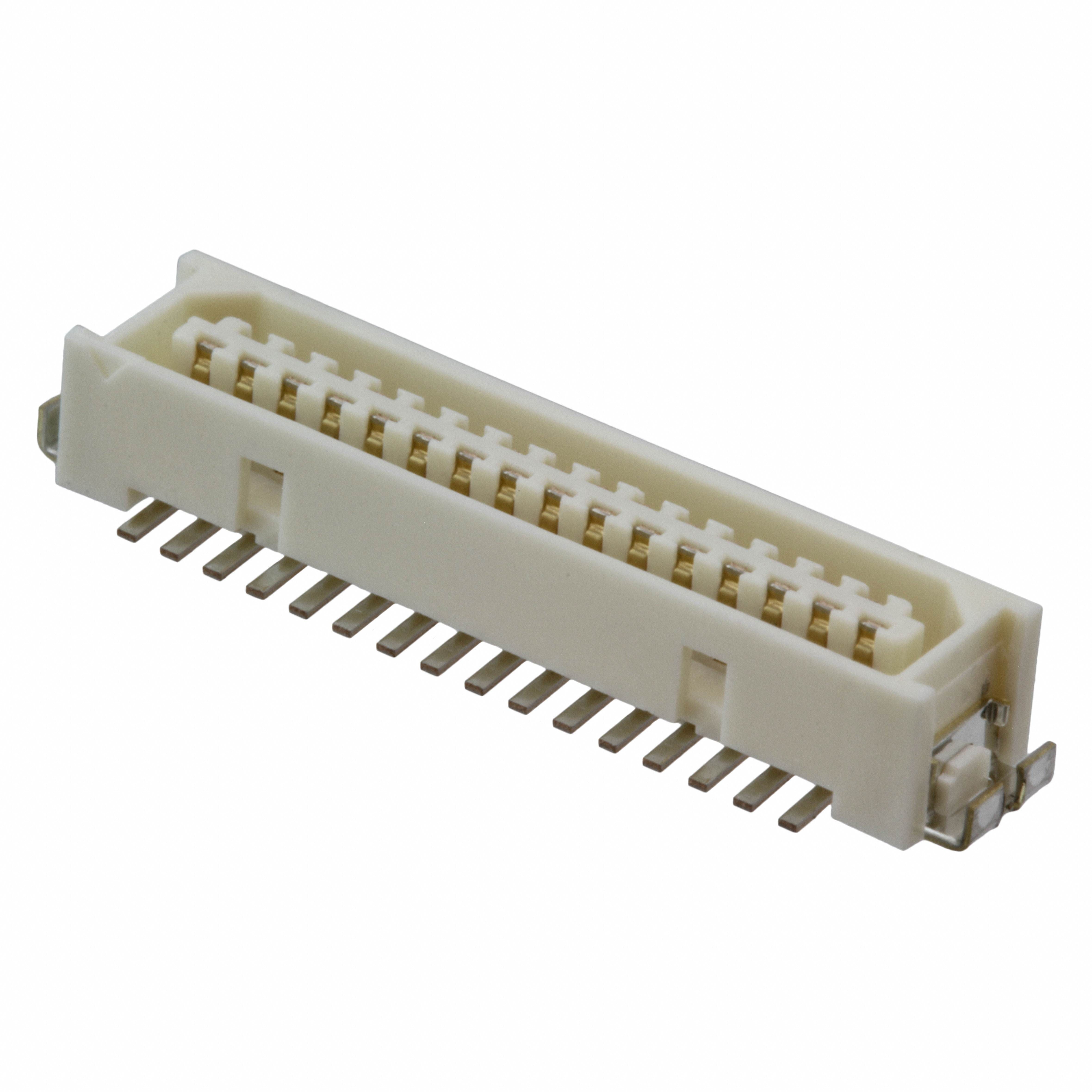

The Hirose Electric DF9-31P-1V(69) is a 31-position, 2-row surface mount header connector featuring center strip contacts. It is designed for board-to-board mezzanine applications requiring a compact, low-profile interconnect solution.
Key specifications include a 1.00mm pitch, gold-plated contacts with a thickness of 0.203µm, and a height above board of 3.30mm. The connector supports a mated stacking height of 4.3mm, making it suitable for space-constrained designs.
The connector includes board guide and solder retention features for reliable assembly and alignment during reflow soldering. It is RoHS3 compliant and has an MSL rating of 1 (unlimited floor life).
The connector has 31 positions arranged in 2 rows.
The pitch is 1.00mm.
Surface mount (SMT).
Gold with a thickness of 0.203µm.
The mated stacking height is 4.3mm.
Board guide and solder retention.
