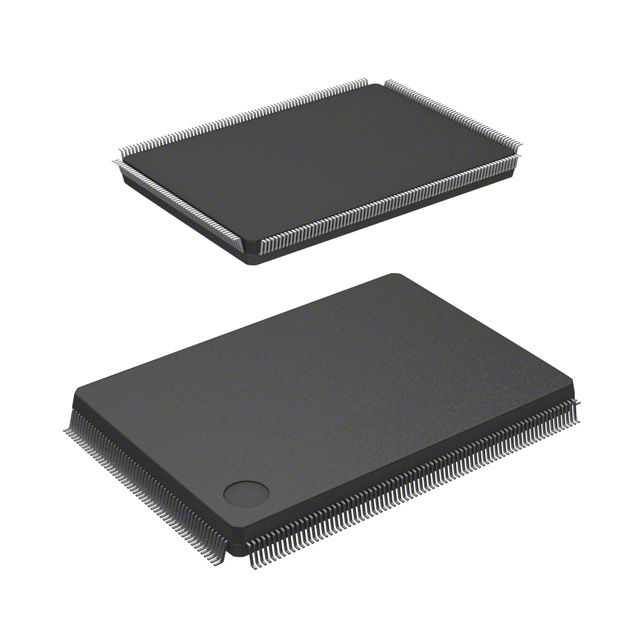

DF7055SF40KNV The Renesas DF7055SF40KNV is a 32-bit microcontroller with 512KB of FLASH program memory and 32KB of RAM. It operates at speeds up to 40MHz.
Mfr Part #:

DF7055SF40KNV

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas DF7055SF40KNV is a 32-bit microcontroller with 512KB of FLASH program memory and 32KB of RAM. It operates at speeds up to 40MHz.
✓ Total Stock: 3,667 pcs

DF7055SF40KNV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,667 pcs
On Request
3667 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF7055SF40KNV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

DF7055SF40KNV Description

Short technical summary and product information.

This Renesas microcontroller, part number DF7055SF40KNV, is designed for embedded applications requiring significant processing power and memory. It features a 32-bit SH-2E core running at 40MHz, coupled with 512KB of FLASH program memory and 32KB of RAM.



Key electrical characteristics include an operating voltage range of 3V to 3.6V and a wide operating temperature range of -40°C to 125°C (TA). The microcontroller supports various peripherals such as DMA, POR, PWM, and WDT, and includes data converters with A/D capabilities of 32x10b.



Connectivity options include CANbus, EBI/EMI, and SCI interfaces, making it suitable for complex communication tasks. The device is supplied in a 256-QFP package with a surface mount type, specifically a 256-BFQFP case.



Environmental compliance includes RoHS3 compliance and an MSL rating of 1 Unlimited.

DF7055SF40KNV Quick Information

Product Type: Microcontroller
Canonical Name: Renesas DF7055SF40KNV Microcontroller
Subcategory: Embedded

DF7055SF40KNV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DF7055SF40KNV Features

  • 32-bit SH-2E core processor.
  • 512KB FLASH program memory.
  • Operates at 40MHz speed.
  • Wide 3V to 3.6V operating voltage.
  • 256-QFP surface mount package.

DF7055SF40KNV Applications

  • Suitable for embedded control systems.
  • Ideal for applications needing CANbus communication.
  • Used in systems requiring SCI interface.
  • Designed for wide temperature operation.

DF7055SF40KNV FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the DF7055SF40KNV?

The operating voltage is 3V to 3.6V.

What package type is the DF7055SF40KNV supplied in?

It is supplied in a 256-BFQFP package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 125°C (TA).

What is the RoHS status of the DF7055SF40KNV?

The RoHS status is RoHS3 Compliant.
