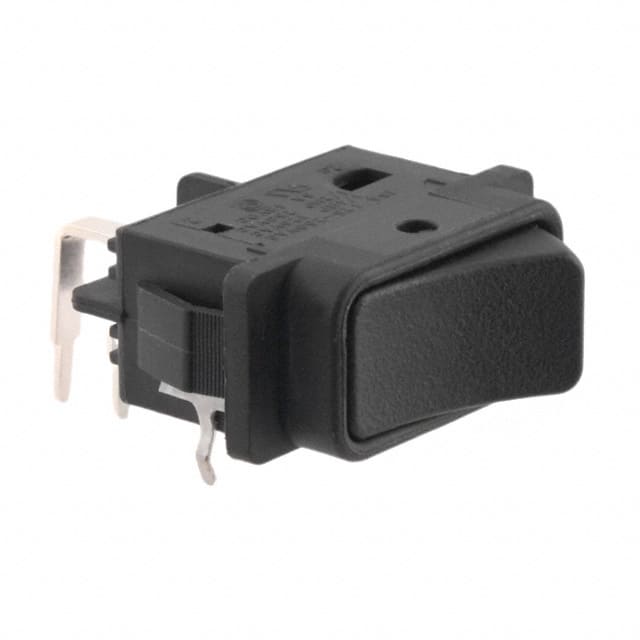

DF62J12S2AQF The C&K Components DF62J12S2AQF is a DPST rocker switch rated for 16A at 125V AC. It features a panel mount, snap-in, right angle termination style.
Mfr Part #:

DF62J12S2AQF

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components DF62J12S2AQF is a DPST rocker switch rated for 16A at 125V AC. It features a panel mount, snap-in, right angle termination style.
✓ Total Stock: 40 pcs
$ Price Range: $0.75

DF62J12S2AQF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DF62J12S2AQF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Material
Actuator Type
Circuit
Color
Contact Material
Current Rating (Amps)
Housing Material
Insulation Resistance
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

DF62J12S2AQF Description

Short technical summary and product information.

The C&K Components DF62J12S2AQF is a Double Pole Single Throw (DPST) rocker switch designed for power switching applications. It offers a robust contact rating of 16 Amps at 125/250V AC and 6 Amps at 48V DC, with an electrical life of 10,000 make-and-break cycles.



This switch features a panel mount, snap-in, and right-angle termination style, making it suitable for various integration needs. The operating temperature range is -20°C to +85°C, ensuring reliable performance in diverse environments. The housing and actuator are constructed from durable 6/6 nylon.



Typical applications for this series include computers, power supplies, appliances, fitness equipment, and off-road vehicles. The switch function is On-Off, and it has a black actuator color with no marking.



Key specifications include a 16A (AC) / 6A (DC) current rating, 125V AC voltage rating, and a panel cutout dimension of 26.14mm x 12.50mm.

DF62J12S2AQF Quick Information

Product Type: Rocker Switch
Series: DF Series
Canonical Name: C&K Components DF62J12S2AQF DPST Rocker Switch
Subcategory: Rocker Switch

DF62J12S2AQF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DF62J12S2AQF Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

DF62J12S2AQF Features

  • DPST rocker switch for power applications.
  • Rated for 16A (AC) and 6A (DC).
  • Operates within -20°C to 85°C.
  • Panel mount with snap-in, right angle termination.
  • Durable 6/6 nylon construction.

DF62J12S2AQF Applications

  • Suitable for computer power supplies.
  • Used in various home appliances.
  • Applicable to fitness equipment.
  • Designed for off-road vehicles.

DF62J12S2AQF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K DF62J12S2AQF rocker switch?

The contact rating is 16 Amps at 125/250V AC, 1/4 HP at 125V AC, 1/2 HP at 250V AC, 6 Amps at 48V DC, 2 Amps at 60V DC, and 11 Amps at 30V DC.

What is the electrical life of the DF62J12S2AQF switch?

The electrical life is 10,000 make-and-break cycles at full load.

What is the operating temperature range for this C&K rocker switch?

The operating temperature range is -20°C to +85°C.

What type of mounting does the DF62J12S2AQF switch use?

It uses a panel mount, snap-in, right angle mounting type.

What are the termination styles available for this switch?

The termination style is PC Pin.

What is the current rating in AC and DC for the DF62J12S2AQF?

The current rating is 16A (AC) and 6A (DC).

What is the circuit type of the DF62J12S2AQF?

The circuit type is DPST.
