| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
216 pcs
|
216 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Color | |
| Actuator Marking | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Material | |
| Current Rating (Amps) | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

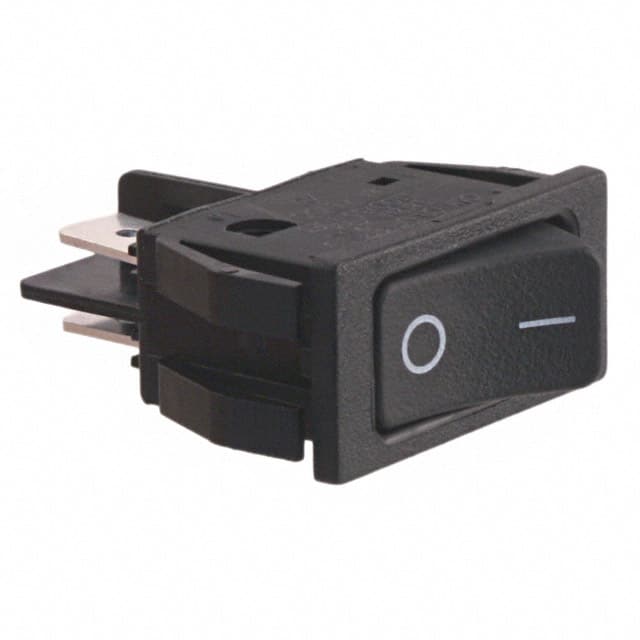

The C&K Components DF62J12P215PQF is a power rocker switch designed for various applications including computers, power supplies, and appliances. It offers a DPST (Double Pole Single Throw) On-Off function.
Key electrical specifications include a contact rating of 16 Amps at 125 and 250V AC, 1/4 HP at 125V AC, 1/2 HP at 250V AC, 6 Amps at 48V DC, 2 Amps at 60V DC, and 11 Amps at 30V DC. The switch has an electrical life of 10,000 make-and-break cycles at full load, an insulation resistance of 1 GΩ minimum, and a dielectric strength of 1,000 Vrms minimum at sea level. The operating temperature range is -20°C to +85°C.
Constructed with a 6/6 nylon housing and actuator, fine silver plated contacts, and silver plated copper terminals, this switch is built for durability. It supports panel mounting with snap-in style and features quick connect terminals (0.250" or 6.3mm). The panel cutout dimensions are rectangular, measuring 27.31mm x 12.50mm. The actuator is a black concave rocker with an 'O -' marking.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 16 Amps at 125/250V AC, 1/4 HP at 125V AC, 1/2 HP at 250V AC, 6 Amps at 48V DC, 2 Amps at 60V DC, and 11 Amps at 30V DC.
The electrical life is 10,000 make-and-break cycles at full load.
The operating temperature range is -20°C to +85°C.
It supports panel mounting with a snap-in style.
It features quick connect terminals measuring 0.250" (6.3mm) and also supports right angle PC thru-hole terminations.
The circuit type is DPST (Double Pole Single Throw) with an On-Off function.
