| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

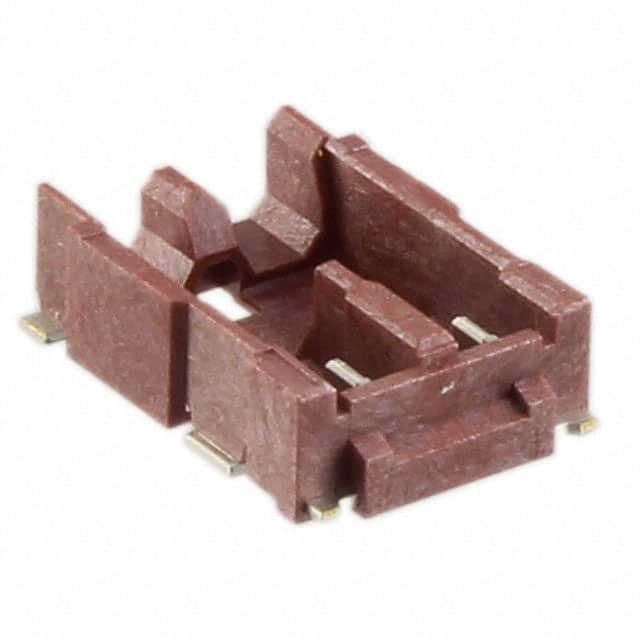

The DF61-2P-2.2V(21) is a 2-position header connector from Hirose Electric, part of the DF61 series. It is designed for board-to-cable/wire connections with a 2.2mm pitch and single-row configuration. The connector features a shrouded 3-wall design with a swing lock fastening mechanism for secure mating.
Key specifications include male blade contacts made of brass with a tin finish (39.4µin thickness), surface mount termination, and a red LCP insulator rated UL94 V-0. The operating temperature range is -55°C to 105°C. The connector includes solder retention features for reliable mounting.
This header is suitable for applications requiring a compact, low-profile interconnect. The 2.2mm pitch allows for space-saving designs. The surface mount package is compatible with standard SMD assembly processes. The connector is RoHS3 compliant and REACH unaffected.
2 positions.
2.20mm (0.087 inches).
Surface mount.
-55°C to 105°C.
Tin with 39.4µin thickness.
Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
