| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

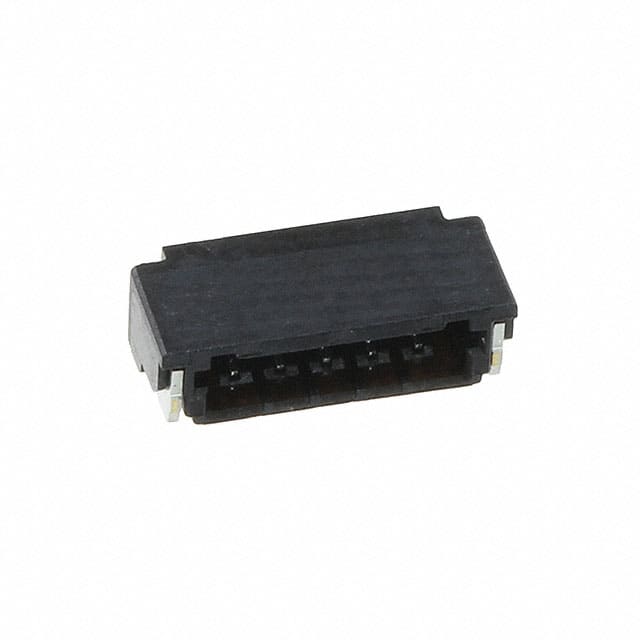

The Hirose Electric DF52-5S-0.8H(21) is a 5 position, single row socket connector from the DF52 series. It features a 0.8mm pitch and is designed for board to cable/wire applications. The connector is rated for 1.5A current and 100V voltage, with an operating temperature range of -40°C to 85°C.
This socket uses non-gendered tin contacts and a surface mount right angle termination style with solder retention. The insulation is black UL94 V-0 rated material, and the connector includes a detent lock fastening mechanism for secure mating. It is glow wire compliant for enhanced safety.
The connector has an insulation height of 1.75mm and all 5 positions are loaded. It is suitable for compact electronic assemblies requiring a reliable, low-profile wire-to-board connection.
It has 5 positions, all loaded, in a single row.
The pitch is 0.80mm (0.031 inches).
The current rating is 1.5A and the voltage rating is 100V.
Surface mount, right angle with solder termination.
-40°C to 85°C.
Yes, it is listed as RoHS3 Compliant and REACH Unaffected.
Detent lock.
