| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

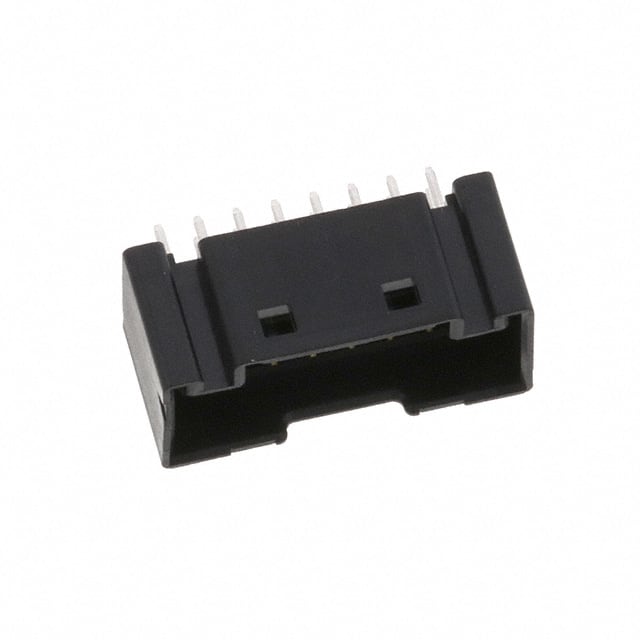

The DF51K-16DP-2DSA(800) is a 16-position, 2-row shrouded header connector from Hirose Electric. It is designed for board-to-cable/wire applications and features a 4-wall shrouded design with latch holder fastening. The contact spacing is 2.00mm (0.079") with row spacing also 2.00mm. Mounting is through hole with solder termination. The male pin contacts are made of brass with tin plating (39.4µin thickness) and have a square shape. The insulator is black glass-filled PBT with a flammability rating of UL94 V-0. This connector is rated for 250VAC/DC and has an operating temperature range of -55°C to 105°C. The current rating varies by wire gauge. All 16 positions are loaded.
16 positions.
2.00mm (0.079").
250VAC/DC.
Through hole.
Varies by wire gauge.
-55°C to 105°C.
Brass with tin plating.
