| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,945 pcs
|
2945 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
434 pcs
|
434 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

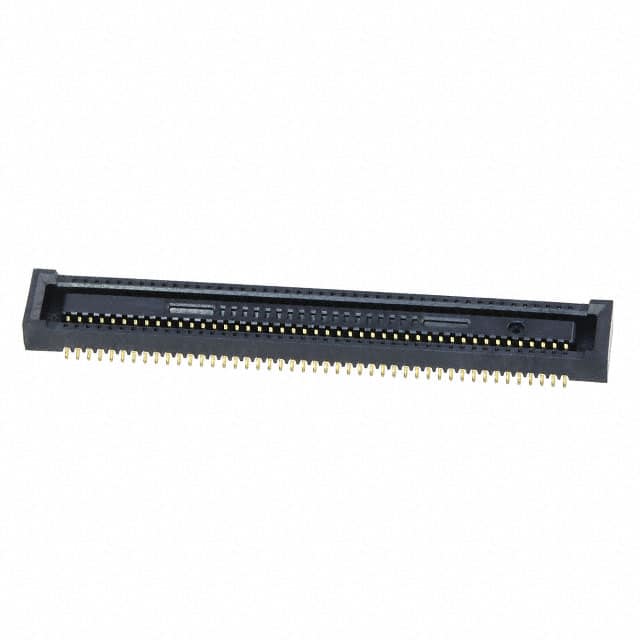

The Hirose DF40C-90DS-0.4V(51) is a 90-position receptacle connector designed for board-to-board mezzanine applications. It features a 0.4mm pitch and a dual-row configuration, making it suitable for high-density PCB designs. The connector has a height above board of 1.45mm and a mated stacking height of 1.5mm, enabling low-profile stacking.
The connector uses surface mount technology for automated assembly and has gold-plated contacts with a thickness of 2.00µin (0.051µm) for reliable electrical performance. It is part of the DF40C series from Hirose Electric, known for compact and robust interconnect solutions.
This connector is RoHS3 compliant and REACH unaffected, ensuring environmental compliance. It is commonly used in portable electronics, communication devices, and other applications requiring space-saving board-to-board connections.
90 positions.
0.4mm (0.016").
Surface mount.
2 rows.
1.45mm (0.057").
1.5mm.
Gold with a thickness of 2.00µin (0.051µm).
