| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

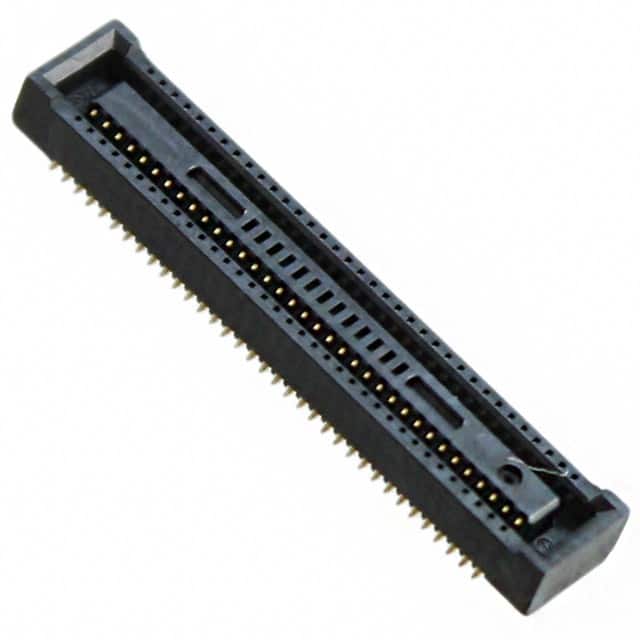

The DF40C-70DS-0.4V(51) is a 70-position, 2-row receptacle connector from Hirose Electric's DF40C series. It features a 0.4mm pitch and surface mount mounting, making it suitable for high-density board-to-board mezzanine applications. The connector has a height above board of 1.45mm and a mated stacking height of 1.5mm.
Contact finish is gold with a thickness of 0.051µm (2.00µin), ensuring reliable electrical connections. The connector is RoHS3 compliant, MSL 1 rated, and REACH unaffected. It is designed for compact electronic devices where space is at a premium.
This receptacle connector is ideal for use in portable electronics, communication equipment, and other applications requiring a low-profile, high-density interconnect solution.
70 positions.
0.40mm.
Surface mount.
Gold with thickness 0.051µm (2.00µin).
1.5mm.
Yes, RoHS3 compliant.
MSL 1 - Unlimited.
