| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

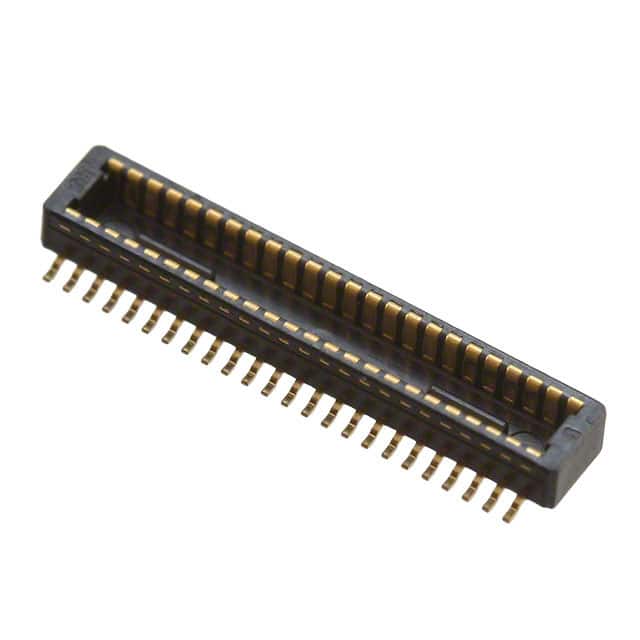

The DF40C-44DP-0.4V(51) is a 44-position, 2-row plug connector from Hirose Electric's DF40C series. It features outer shroud contacts and a 0.4mm pitch, making it suitable for high-density mezzanine board-to-board connections.
This connector is surface mountable with a height above board of 1.14mm. The contacts are gold-plated with a thickness of 2.00µin, ensuring reliable conductivity. It supports a range of mated stacking heights from 1.5mm to 4mm, providing flexibility in board spacing. The solder retention feature enhances mechanical stability during assembly.
The DF40C-44DP-0.4V(51) is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). It is designed for use in compact electronic devices where space is at a premium, such as smartphones, tablets, and portable electronics.
44 positions arranged in 2 rows.
0.40mm (0.016 inches).
Surface mount.
Gold with a thickness of 2.00µin (0.051µm).
1.14mm (0.045 inches).
1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, and 4mm.
Yes, it is RoHS3 compliant and REACH unaffected.
