| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,174 pcs
|
1174 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape and Reel | |
| Termination Style |

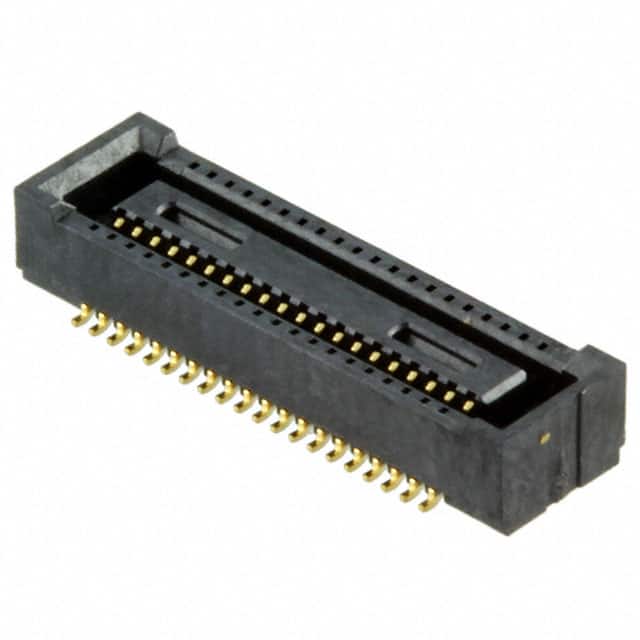

The DF40C(2.0)-40DS-0.4V(51) is a 40 position receptacle connector from Hirose Electric's DF40C series. It features a center strip contact arrangement with two rows and a fine 0.40mm pitch, designed for surface mount soldering.
This mezzanine connector offers a mated stacking height of 2mm, making it suitable for space-constrained board-to-board applications. The contacts are finished with gold plating (2.00 microinch thickness) for reliable signal integrity and corrosion resistance.
The component measures 1.95mm above the board and is supplied in tape and reel packaging for automated assembly. Its compact 0.40mm pitch enables high-density interconnections in portable and miniaturized electronic devices.
40 positions arranged in 2 rows.
0.40mm (0.016 inches).
Surface mount.
2mm.
Gold with 2.00 microinch (0.051 micrometer) thickness.
