| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

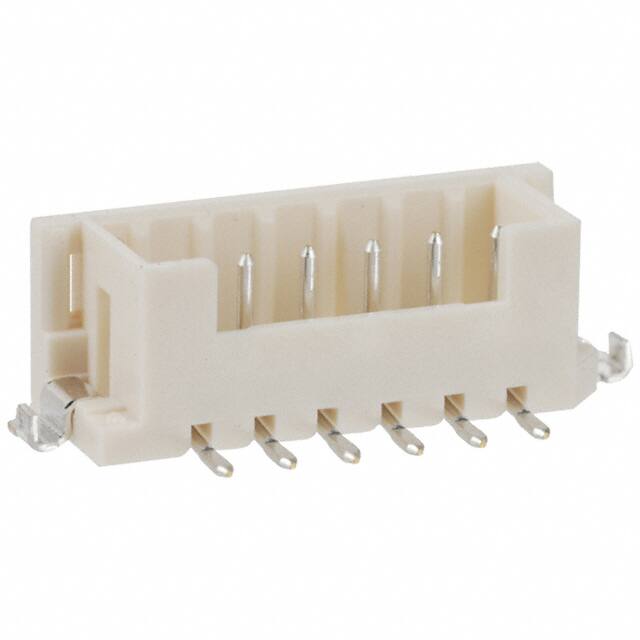

The DF3Z-6P-2V(21) is a 6-position, single row, shrouded header connector from Hirose Electric's DF3Z series. It features a 2.00mm pitch, male pin contacts made of brass with a tin finish, and a surface mount solder termination. The connector is designed for board-to-board or cable-to-board applications and includes a board guide and solder retention features for reliable assembly. The insulation is beige polyamide (nylon) with a UL94 V-0 flammability rating, and the insulation height is 5.90mm. The operating temperature range is -55°C to 105°C, and the current rating is 3A. The connector is RoHS3 compliant and REACH unaffected, with an MSL 1 unlimited rating. This shrouded header with 4-wall design provides robust mating security and is suitable for compact electronic assemblies.
6 positions.
2.00mm.
3A.
Surface mount.
-55°C to 105°C.
Polyamide (PA), Nylon.
Yes, it is a shrouded 4-wall design.
