| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
215 pcs
|
215 pcs | On Request | 1 | On Request | On Request | 2000 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Configuration | |
| Current | |
| Forward Current | |
| Junction Temperature | |
| Lead Spacing | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Wavelength |

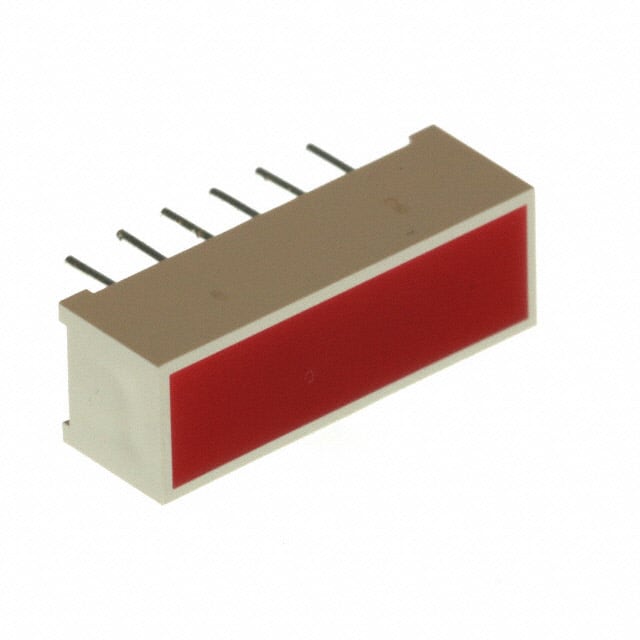

The Kingbright DF3ID is a High Efficiency Red LED Light Bar designed for various applications including home and smart appliances, display time, and industrial instrumentation. It is constructed using Gallium Arsenide Phosphide on Gallium Phosphide material.
This LED light bar emits a High Efficiency Red light with a peak emission wavelength of 627nm and a dominant wavelength of 617nm. It offers a typical luminous intensity of 27mcd at 10mA and a typical forward voltage of 1.9V at 10mA. The device has a power dissipation rating of 75mW and a maximum reverse voltage of 5V.
The DF3ID features a uniform light-emitting area, excellent on/off contrast, and is easily mounted on P.C. boards or industry-standard sockets. Its package dimensions are 6.8mm x 19.9mm. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
Key electrical and optical characteristics include a spectral bandwidth of 45nm and a capacitance of 15pF. The operating temperature range is -40°C to +85°C, and the storage temperature range is also -40°C to +85°C. Absolute maximum ratings include a DC forward current of 30mA and a peak forward current of 160mA.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak emission wavelength for the Kingbright DF3ID is 627nm.
The typical luminous intensity of the DF3ID is 27mcd at 10mA.
The typical forward voltage for the Kingbright DF3ID is 1.9V at 10mA.
The operating temperature range for the DF3ID is -40°C to +85°C.
Yes, the Kingbright DF3ID is RoHS3 compliant.
The DF3ID is a Light Bar package with Through Hole mounting.
