| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

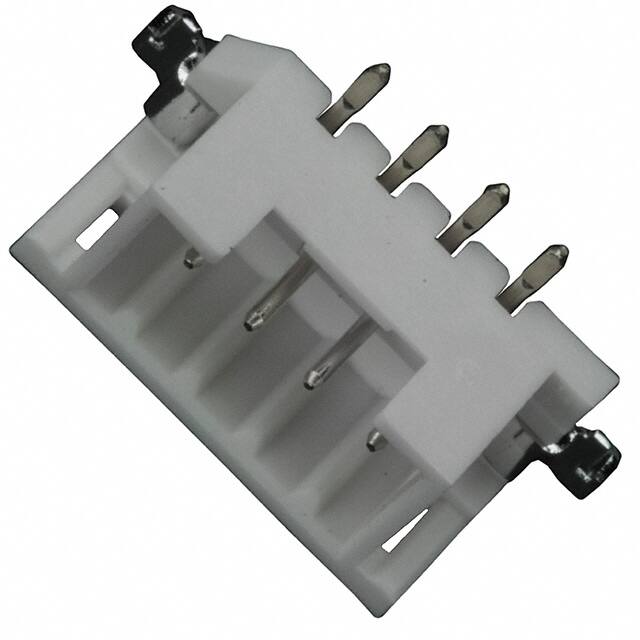

The DF3EA-4P-2V(51) is a 4-position, single-row, 2.00mm pitch surface mount header from Hirose Electric's DF3EA series. It features a shrouded 4-wall design with push-pull fastening, providing secure mating for board-to-board or cable connections. The header uses male pin contacts made of brass with a gold finish of 8.00µin (0.203µm), ensuring reliable conductivity and corrosion resistance.
The insulation is made of beige polyamide (nylon) with a UL94 V-0 flammability rating, suitable for applications requiring flame retardance. The operating temperature range is -55°C to 105°C, and the voltage rating is 250VAC. The current rating varies by wire gauge. The component includes a solder retention feature for improved mechanical stability during assembly.
This header is designed for surface mount soldering termination and is suitable for automated assembly processes. The 2.00mm pitch allows for compact board designs while maintaining adequate spacing for signal integrity.
It has 4 positions in a single row, all loaded.
The pitch is 2.00mm (0.079 inches).
The voltage rating is 250VAC.
Surface mount (SMD) with solder termination.
-55°C to 105°C.
Gold finish with 8.00µin (0.203µm) thickness on brass contacts.
Yes, it has a shrouded 4-wall design with push-pull fastening.
