| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
705 pcs
|
705 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

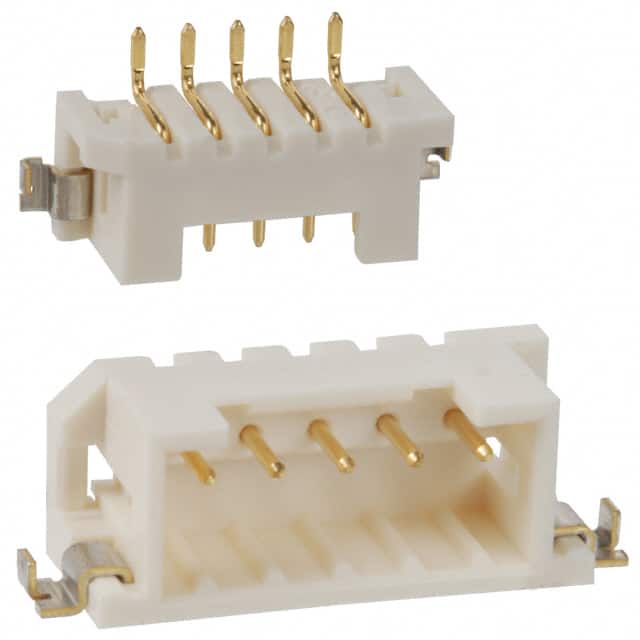

The Hirose Electric DF3DZ-5P-2H(51) is a 5-position, single-row header connector designed for board-to-board or cable-to-board applications. It features a shrouded 4-wall design that protects the male pin contacts from damage and misalignment. The contacts are made of brass with a gold finish, ensuring reliable electrical conductivity and corrosion resistance.
The connector offers a 2.00mm pitch and surface mount right angle mounting, making it suitable for compact, space-constrained PCB layouts. It is rated for a current of 3A and operates over a temperature range of -55°C to 105°C. The insulation is made of polyamide (nylon) in a beige color, with a UL94 V-0 flammability rating for enhanced safety.
The header includes a solder retention feature to secure the part during assembly. All 5 positions are loaded in a single row, with push-pull fastening type. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
It has 5 positions in a single row.
The pitch is 2.00mm (0.079 inches).
The current rating is 3A.
It is surface mount with right angle orientation.
The operating temperature range is -55°C to 105°C.
The contacts have a gold finish.
The insulation material is rated UL94 V-0.
