| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

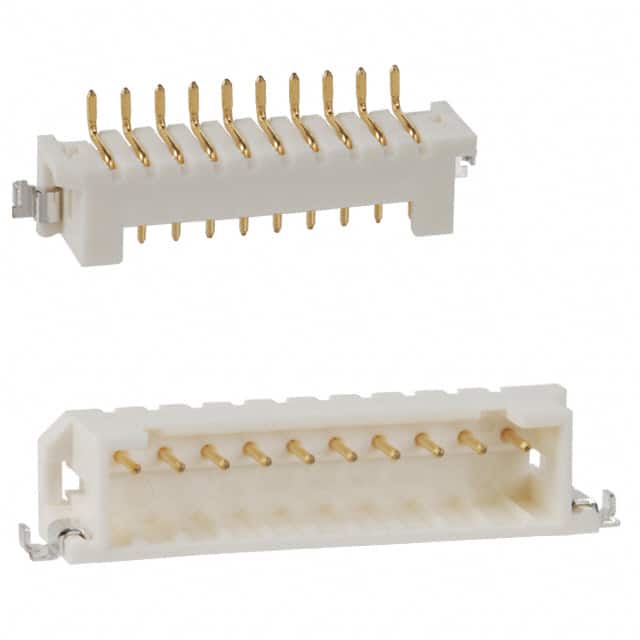

The DF3DZ-10P-2H(51) is a 10-position, single-row shrouded header from Hirose Electric, part of the DF3DZ series. It features a 2.00mm pitch and a 4-wall shrouded design that provides robust mating alignment and protection for male pins. The connector is configured for surface mount, right angle termination, making it suitable for compact PCB layouts where space is limited. The contacts are made of brass with a gold finish, ensuring reliable electrical conductivity and corrosion resistance. The insulator is molded from polyamide (nylon) with a UL94 V-0 flammability rating, suitable for applications requiring flame retardance. The header is rated for a continuous current of 3A and operates over a temperature range of -55°C to 105°C, accommodating a wide variety of environments. The style is board to board or cable, allowing flexible use in interconnecting PCBs or connecting to discrete wires. The termination is solder, requiring standard reflow soldering processes. This component is RoHS3 and REACH compliant (unverified status).
10 positions.
2.00mm.
3A.
Surface mount, right angle.
-55°C to 105°C.
Yes, it is a 4-wall shrouded header.
Gold.
