| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Humidity Range | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Storage Temperature Range | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

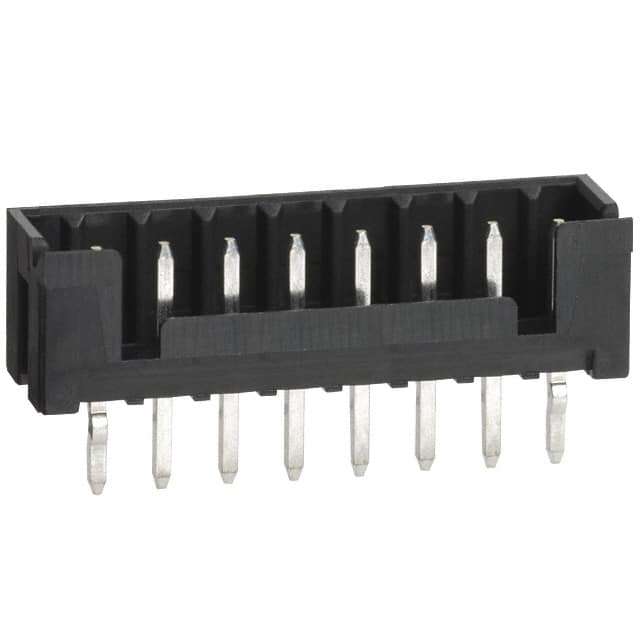

The Hirose DF3A-8P-2DSA is a 2mm pitch single row pin header designed for board-to-board or cable connections. It features a shrouded 4-wall box construction that provides scoop-proof protection and robust mating. The header has 8 positions loaded with all male square pins made of brass with a tin finish.
This through hole header supports both press-fit and solder termination styles. The insulation is black polyamide (nylon) rated UL94 V-0. Key electrical ratings include 3A current, 250V AC voltage, 30 mΩ maximum contact resistance, and 1000 MΩ minimum insulation resistance. The operating temperature range is -30°C to +85°C.
The DF3A series is part of Hirose's DF3 family of 2mm pitch connectors, commonly used in business equipment such as copiers and printers. The header's low profile design with 5.00mm insulation height and 7.60mm overall contact length suits space-constrained applications.
8 positions, all loaded.
2.00mm (0.079 inches).
3A.
250V AC.
Through hole, with press-fit or solder termination.
-30°C to +85°C.
Yes, RoHS3 compliant.
