| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating (max) |

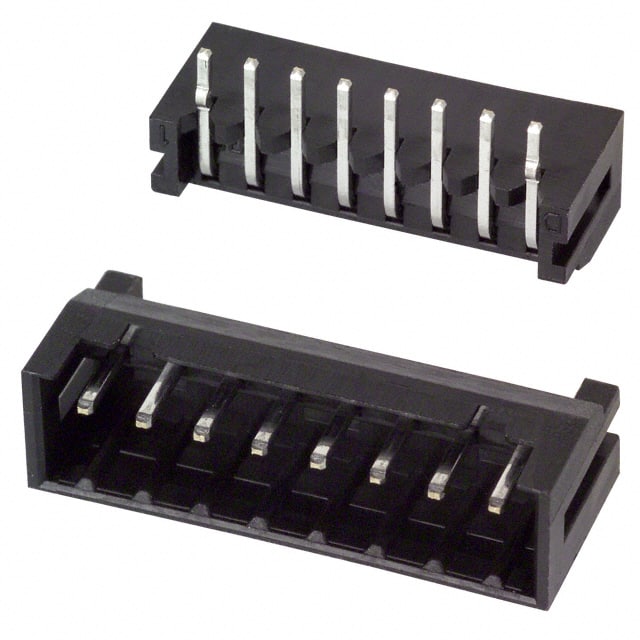

The Hirose DF3A-8P-2DS is a 2mm pitch single-row pin header designed for board-to-board or cable connections. It features a shrouded 4-wall box construction for scoop-proof mating and robust mechanical retention. The header is mounted through-hole with a right-angle orientation, allowing horizontal board-to-board or cable mating.
Electrical ratings include a current rating of 3A and a maximum voltage rating of 250V AC. The operating temperature range is -55°C to 105°C (with a datasheet note of -30°C to +85°C). Contacts are made of brass with a tin finish, and the insulator is black polyamide (PA) nylon with a UL94 V-0 flammability rating.
The header has 8 positions, all loaded, in a single row with a 2.00mm pitch. The insulation height is 5.00mm, and the contact length is 3.10mm. Termination options include both press-fit and solder, providing flexibility for different assembly processes.
The pitch is 2.00mm.
It has 8 positions, all loaded, in a single row.
The current rating is 3A.
The maximum voltage rating is 250V AC.
It uses through-hole, right-angle mounting.
