| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing (Pitch) | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Humidity Range | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Storage Humidity Range | |
| Storage Temperature Range | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating AC | |
| Withstanding Voltage |

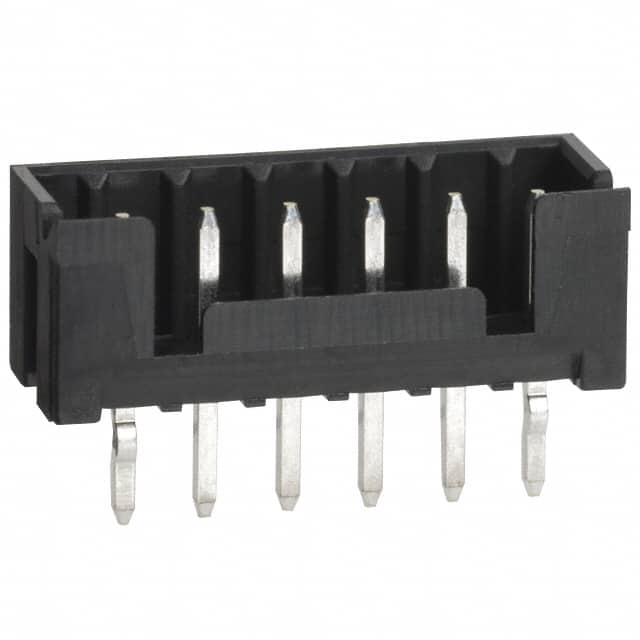

The Hirose DF3A-6P-2DSA is a 6 position single row pin header from the DF3 series, featuring a 2.00mm pitch and a shrouded 4-wall design for secure mating. It is rated for 3A current and 30V AC, with a contact resistance of 30 mOhms max and insulation resistance of 1000 MOhms min. The header uses square tin-plated brass male pins with a mating contact length of 3.10mm and an overall contact length of 7.60mm.
The insulator is molded from black polyamide (nylon) with a UL94 V-0 flammability rating. The component is designed for through hole mounting with press-fit or solder termination. It is suitable for board-to-board or cable connections in business equipment such as copiers and printers. The operating temperature range is -30°C to +85°C.
The DF3A-6P-2DSA has 6 positions in a single row, all loaded.
The pitch (lead spacing) is 2.00mm.
The current rating is 3A.
The voltage rating is 30V AC (UL/CSA approved).
It uses through hole mounting with press-fit or solder termination.
The datasheet specifies -30°C to +85°C.
Yes, it is RoHS3 compliant and REACH unaffected.
