| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

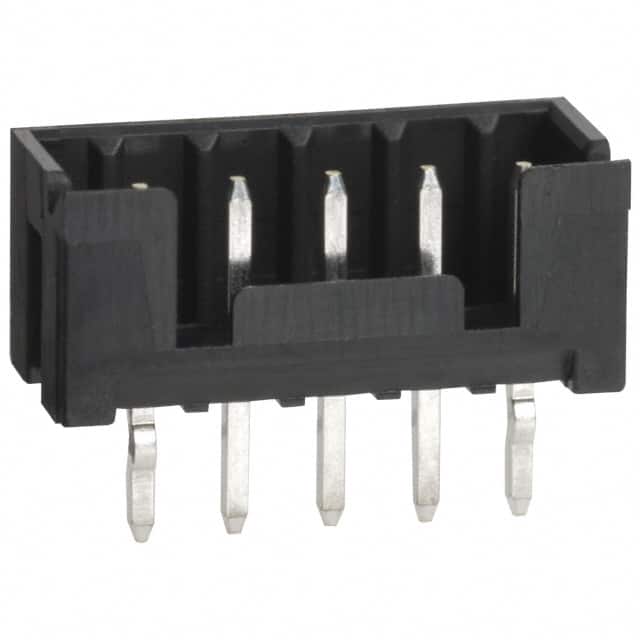

The Hirose DF3A-5P-2DSA is a 5-position, single-row pin header from the DF3A series, featuring a 2.00mm pitch and a shrouded 4-wall design for secure mating. Designed for board-to-board or cable connections, it uses through-hole mounting with press-fit and solder termination options.
Electrical rating is 3A with an operating temperature range of -55°C to 105°C. Contacts are made of brass with a tin finish (1.00µm thickness), and the insulator is black polyamide (PA) nylon with a UL94 V-0 flammability rating. The overall contact length is 7.60mm, mating contact length is 3.10mm, and insulation height is 5.00mm.
This header is suitable for various applications including business equipment such as copiers and printers. The part is RoHS3 compliant and REACH unaffected.
It has 5 positions in a single row.
The pitch is 2.00mm.
The current rating is 3A.
Through-hole mounting with press-fit and solder termination.
-55°C to 105°C.
Yes, it is RoHS3 compliant and REACH unaffected.
