| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| current_rating (Nominal @ AWG#22-24) | |
| current_rating (Nominal @ AWG#26) | |
| current_rating (Nominal @ AWG#28) |

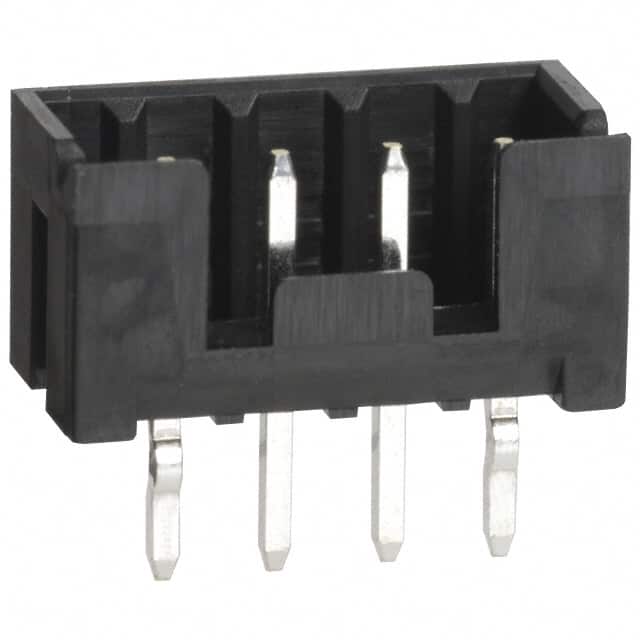

The Hirose Electric DF3A-4P-2DSA is a 2.00mm pitch single-row shrouded header connector designed for board-to-board or cable connections. It features four male pin contacts with tin plating, housed in a black polyamide (nylon) insulator with UL94 V-0 flammability rating. The header is fully shrouded with a 4-wall design, providing robust protection for contacts.
Electrical ratings include a current rating of 3A for AWG22-24, 2A for AWG26, and 1A for AWG28, with a voltage rating of 100V AC. Contact resistance is 30mΩ maximum at 100mA, insulation resistance is 1000MΩ minimum at 500V DC, and dielectric withstanding voltage is 650V AC for 1 minute. The operating temperature range is -55°C to 105°C.
The header is mounted through hole with press-fit or solder termination, and uses a push-pull fastening mechanism. It is suitable for use in business equipment such as copiers and printers.
4 positions.
2.00mm (0.079 inches).
3A for AWG22-24, 2A for AWG26, 1A for AWG28.
100V AC.
Through hole with press-fit or solder termination.
-55°C to 105°C.
Brass contacts with tin plating.
