| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File Number | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage | |
| ul_file_number |

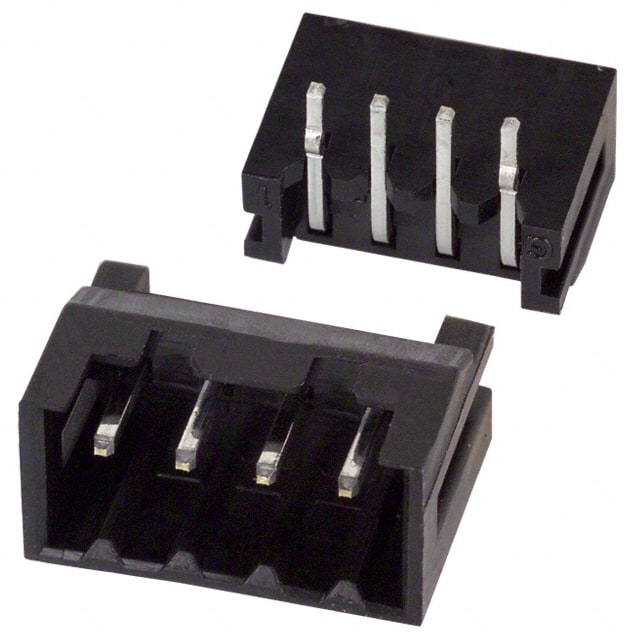

The Hirose DF3A-4P-2DS is a 4-position, single-row pin header from the DF3 series, designed for board-to-board or cable connections. It features a right-angle through-hole mounting style with a 2.00mm pitch, making it suitable for compact PCB layouts. The connector is fully shrouded with a 4-wall box design, providing robust protection for the male pins and ensuring reliable mating.
Electrical ratings include a current rating of 3A and a voltage rating of 100V AC. The contact resistance is 30 mΩ maximum at 100mA, and insulation resistance is 1000 MΩ minimum at 500V DC. The operating temperature range is -55°C to 105°C, and the insulation material is UL94 V-0 rated polyamide (nylon).
The header uses brass contacts with a tin finish and supports both press-fit and solder termination. The mating contact length is 3.10mm. This connector is suitable for use in business equipment such as copiers and printers, as well as other industrial applications requiring a reliable 2mm pitch interface.
The pitch is 2.00mm (0.079 inches).
It has 4 positions in a single row.
The current rating is 3A.
The voltage rating is 100V AC.
It uses through-hole, right-angle mounting.
Yes, it is fully shrouded with a 4-wall design.
The operating temperature range is -55°C to 105°C.
