| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,500 pcs
|
6500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
86 pcs
|
86 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File Number | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Nominal @ Wire AWG 22-24) | |
| Current Rating (Nominal @ Wire AWG 26) | |
| Current Rating (Nominal @ Wire AWG 28) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Humidity Range | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Storage Humidity Range | |
| Storage Temperature Range | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating (Nominal @ Crimping) | |
| Voltage Rating (Nominal @ Press-fit) | |
| Withstanding Voltage | |
| ul_file_number |

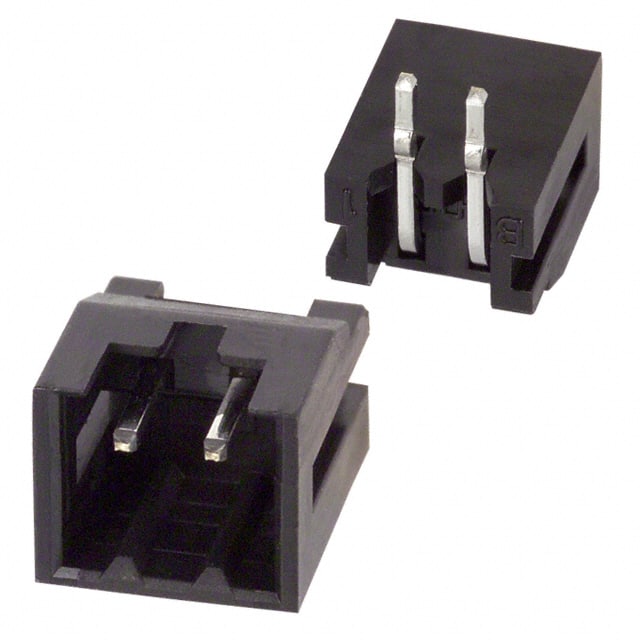

The DF3A-2P-2DS is a 2-position, 1-row, 2.00mm pitch right angle header from Hirose Electric's DF3 series. It features a shrouded 4-wall design for protection and uses male pin contacts made of brass with tin finish. The header supports both press-fit and solder termination and is rated for currents up to 3A (AWG 22-24) and voltages up to 250V AC (press-fit). Operating temperature range is -30°C to +85°C per the datasheet, with storage from -10°C to +60°C. Electrical characteristics include contact resistance of 30 mΩ max, insulation resistance of 1000 MΩ min, and withstanding voltage of 650V AC. The insulation material is polyamide (nylon) with UL94 V-0 flammability rating. The part is RoHS compliant and carries UL (E52653) and CSA (LR95109) approvals. Suitable for board-to-board or cable connections in business equipment such as copiers and printers.
2 positions.
2.00mm (0.079 inches).
3A for AWG 22-24, 2A for AWG 26, 1A for AWG 28.
250V AC for press-fit termination, 100V AC for crimping.
Through hole, right angle.
-30°C to +85°C (per datasheet).
30 mΩ maximum at 100mA.
