| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

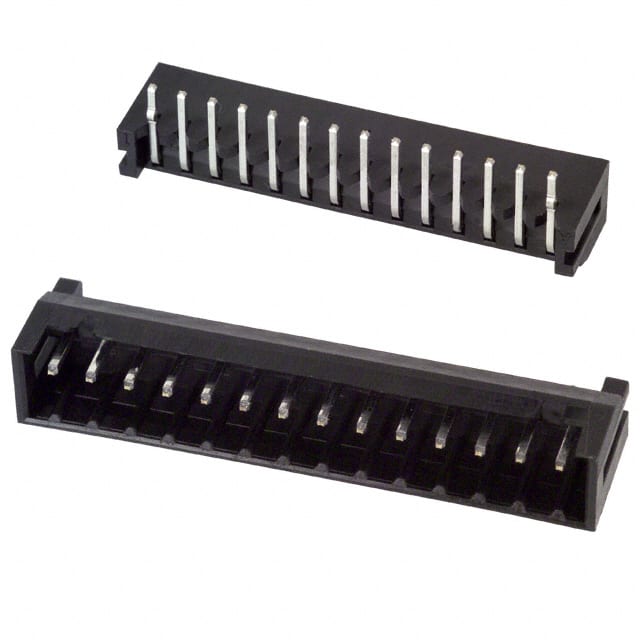

The Hirose DF3A-14P-2DS is a 14-position single row pin header from the DF3 series, featuring a 2.00mm pitch and right angle through-hole mounting. It is shrouded with a 4-wall design for protection and uses push-pull fastening. The contact material is brass with a tin finish, and the insulation is black polyamide (nylon) rated UL94 V-0. This connector supports board-to-board or cable connections and has a current rating of 3A with an operating temperature range of -55°C to 105°C. Termination options include press-fit and solder. The part is RoHS3 compliant and REACH unaffected.
It has 14 positions.
The pitch is 2.00mm.
The current rating is 3A.
Through hole, right angle mounting.
-55°C to 105°C.
Yes, it is RoHS3 compliant.
Insulation is black polyamide (nylon) with UL94 V-0 rating.
