| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-05-08 03:15:19 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

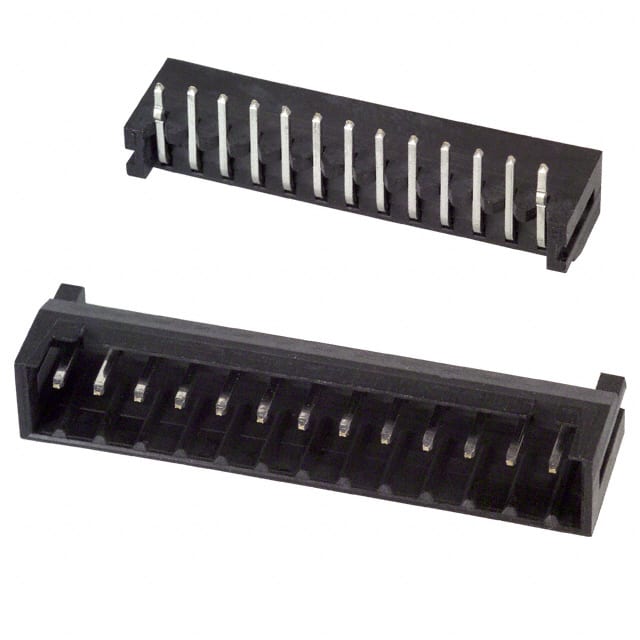

The Hirose DF3A-13P-2DS is a 2mm pitch pin header connector designed for board-to-board or discrete wire cable connections.
This shrouded header has 13 positions in a single row, with a right-angle mounting orientation and through-hole termination. The box-type shroud provides scoop-proof mating and robust mechanical stability. Contacts are made of tin-plated brass and are square in shape.
The header is rated for 3A current and operates over a temperature range of -55°C to 105°C. The insulator is black polyamide (nylon) with a UL94 V-0 flammability rating. The termination style supports both press-fit and solder connections.
Typical applications include business equipment such as copiers and printers, as well as any application requiring a compact, reliable 2mm pitch interconnect.
The DF3A-13P-2DS has 13 positions in a single row.
The pitch is 2.00mm.
The current rating is 3A.
It is a through-hole right angle mounting type, with press-fit and solder termination.
The operating temperature range is -55°C to 105°C.
RoHS3 compliance is indicated, but not verified with a document.
