| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

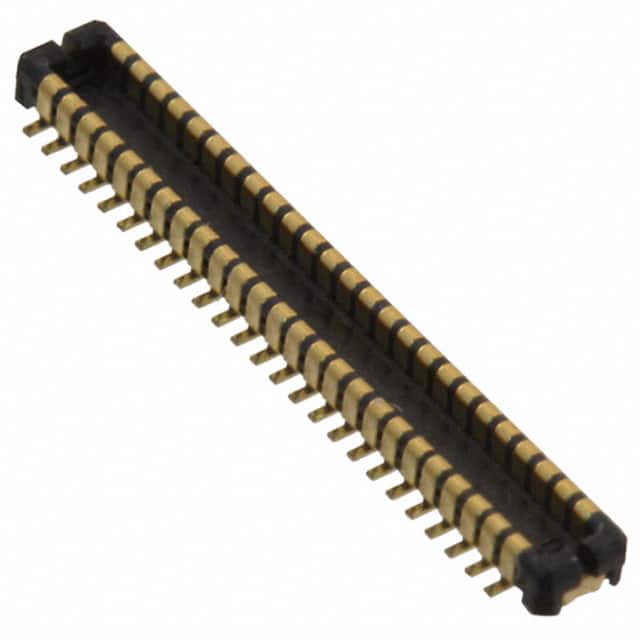

This is a receptacle connector from the Hirose DF37NB series. It features 50 positions arranged in 2 rows with a fine 0.4mm pitch, ideal for compact board-to-board mezzanine connections. The connector is surface mount with a height above board of 0.97mm and a mated stacking height of 0.98mm. Contacts are finished with gold for reliable conductivity and corrosion resistance. The connector includes a solder retention feature for secure attachment during assembly. It is RoHS3 compliant and REACH unaffected. This part is suitable for use in portable electronics and other space-constrained applications requiring high-density interconnects.
The connector has 50 positions arranged in 2 rows.
The pitch is 0.40mm.
The mounting type is surface mount.
The contact finish is gold.
The mated stacking height is 0.98mm.
Yes, it features solder retention for secure attachment.
Yes, the part is RoHS3 compliant according to database records.
