| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style |

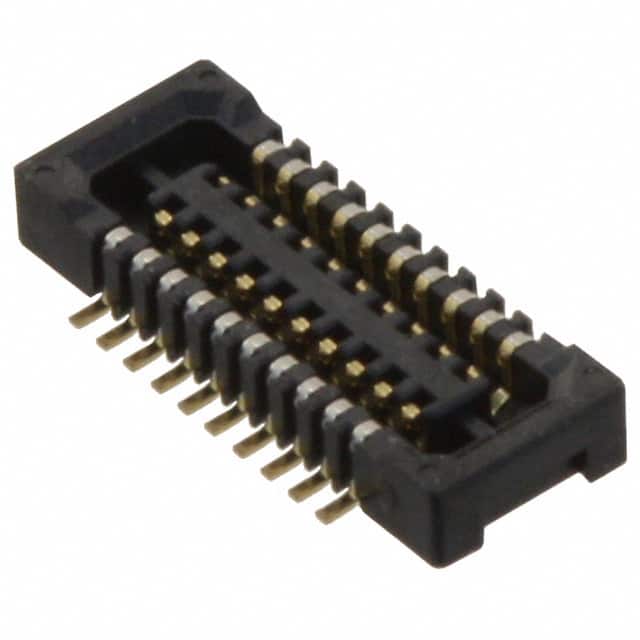

The DF37NB-20DS-0.4V(75) is a 20-position receptacle connector from Hirose Electric, designed for board-to-board mezzanine applications. It features a 0.4mm pitch with 2 rows of contacts, enabling high-density interconnects in compact electronic assemblies.
The connector is surface mount compatible with a gold contact finish of 4.00µin (0.100µm) for reliable conductivity and corrosion resistance. The solder retention feature ensures secure mechanical attachment during assembly and operation. The height above board is 0.97mm, and the mated stacking height is 0.98mm, suitable for low-profile stacking.
This component is RoHS3 compliant and has a Moisture Sensitivity Level of 1 (unlimited), making it robust for various manufacturing environments. It is ideal for portable devices, consumer electronics, and other applications requiring space-efficient board-to-board connections.
This connector has 20 positions arranged in 2 rows.
The pitch is 0.40mm (0.016 inches).
This connector is surface mount (SMD).
The contacts have a gold finish with a thickness of 4.00µin (0.100µm).
Yes, it features solder retention for secure mounting.
The height above board is 0.97mm (0.038 inches).
The mated stacking height is 0.98mm.
