| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style |

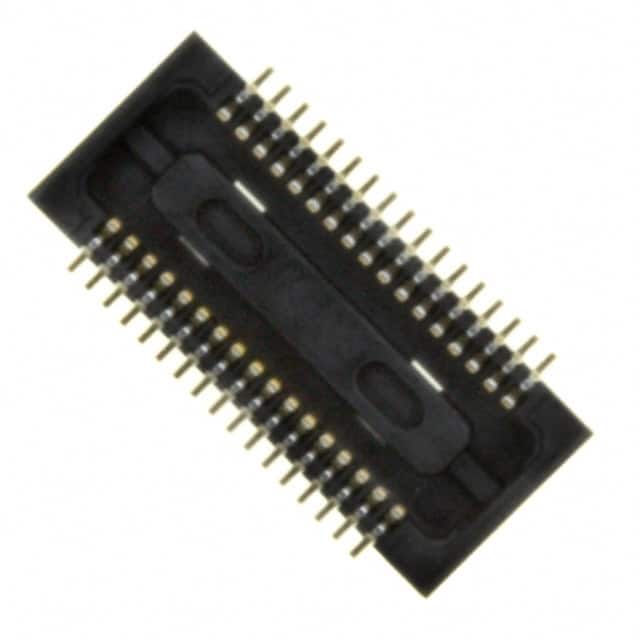

The DF30FB-34DS-0.4V(81) from Hirose Electric is a 34-position receptacle with outer shroud contacts, part of the DF30 series. It has a 0.4mm pitch and 2 rows, designed for compact board-to-board stacking applications.
This surface mount connector features a mated stacking height of 0.9mm and an above-board height of 0.88mm. The contacts are gold plated with a thickness of 0.051µm (2.00µin) for reliable electrical performance. Solder retention helps secure the connector during assembly.
The connector is RoHS3 and REACH compliant, with an MSL of 1 (unlimited), ensuring suitability for soldering processes. The termination style is solder, and the packaging is surface mount compatible.
It has 34 positions arranged in 2 rows.
The pitch is 0.4mm.
It is surface mount.
The contact finish is gold with a thickness of 0.051µm (2.00µin).
The mated stacking height is 0.9mm.
Yes, it features solder retention.
The MSL is Level 1 (Unlimited).
