| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,600 pcs
|
4600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,186 pcs
|
3186 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 1970-01-03 02:10:18 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Maximum @ Wire size AWG#22 to 24) | |
| Current Rating (Maximum @ Wire size AWG#26) | |
| Current Rating (Maximum @ Wire size AWG#28) | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Voltage Rating (Maximum @ Press-connect) | |
| Voltage Rating (Maximum @ Press-fit) |

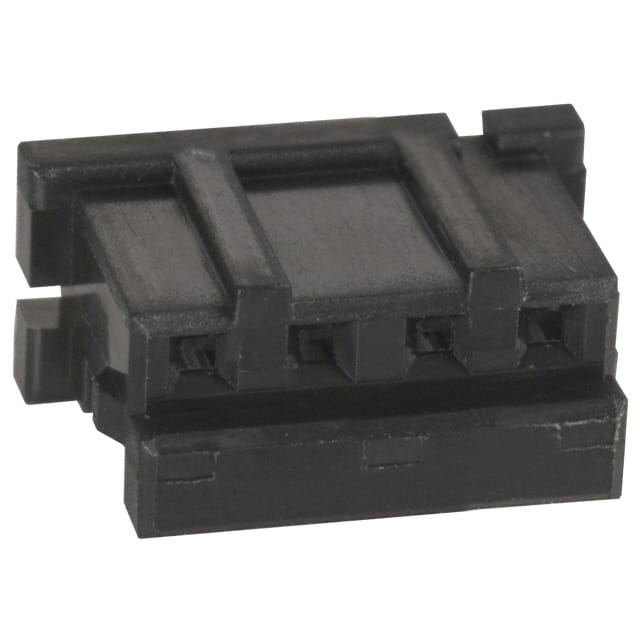

The Hirose Electric DF3-4S-2C is a 4-position, single-row receptacle housing from the DF3 series designed for discrete wire connections. With a 2.00mm pitch, this housing offers a compact solution for wire-to-board or in-line applications.
The housing accepts female socket contacts with crimp termination, providing secure and reliable connections. It supports free hanging (in-line) mounting, allowing for flexible cable assembly designs. The operating temperature range is -30°C to +85°C per the datasheet.
Electrically, the current rating varies by wire size: 3A for AWG#22-24, 2A for AWG#26, and 1A for AWG#28. The voltage rating is 250V AC for press-fit applications and 100V AC for press-connect applications. The housing is RoHS3 compliant and REACH unaffected, though the datasheet notes non-RoHS products have been discontinued.
Typical applications include business equipment such as copiers and printers, where low-profile design and reliable discrete wire connections are required. The DF3 series is UL and CSA approved.
4 positions in a single row.
2.00mm (0.079 inches).
The maximum current rating depends on wire size: 3A for AWG#22-24, 2A for AWG#26, and 1A for AWG#28.
For press-fit applications, the maximum voltage rating is 250V AC; for press-connect applications, it is 100V AC.
Free hanging (in-line) mounting.
-30°C to +85°C according to the datasheet.
Female socket contacts with crimp termination.
