| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:35:31 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

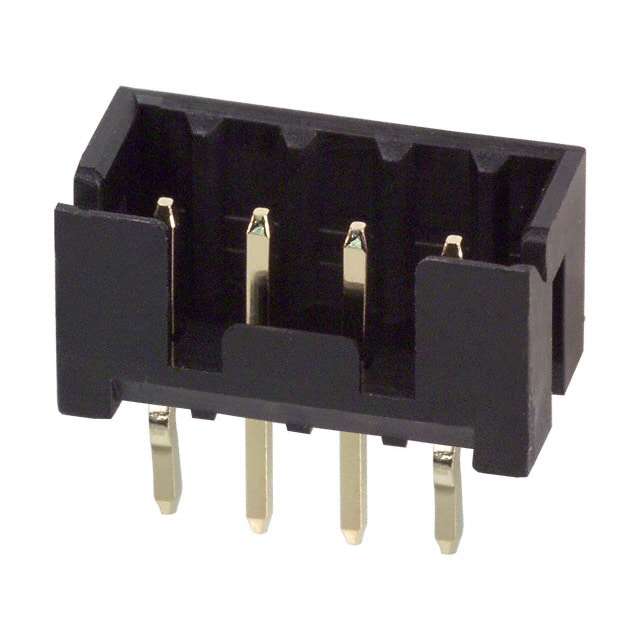

The Hirose Electric DF3-4P-2DSA(01) is a 4-position, single-row pin header from the DF3 series, designed for board-to-board or cable connections. It features a 2.00mm pitch and a shrouded 4-wall design for robust mating. The header is configured for vertical through-hole mounting with press-fit and solder termination options.
This connector is built with a black polyamide (PA) or nylon insulator rated UL94 V-0 for flammability. The male square pins are made of brass with a gold contact finish of 8.00µin (0.203µm). The overall contact length is 7.60mm with a mating pin length of 3.10mm. The insulation height is 5.00mm.
Electrically, the DF3-4P-2DSA(01) is rated for a current of 3A. The operating temperature range is specified as -30°C to +85°C per the datasheet. The push-pull fastening type ensures secure connection and easy disconnection. This component is RoHS3 compliant and REACH unaffected.
It has 4 positions in a single row.
The pitch is 2.00mm.
The current rating is 3A.
It is a through hole mounting connector.
The contact finish is gold with a thickness of 8.00µin (0.203µm).
Yes, it is listed as RoHS3 compliant.
