| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

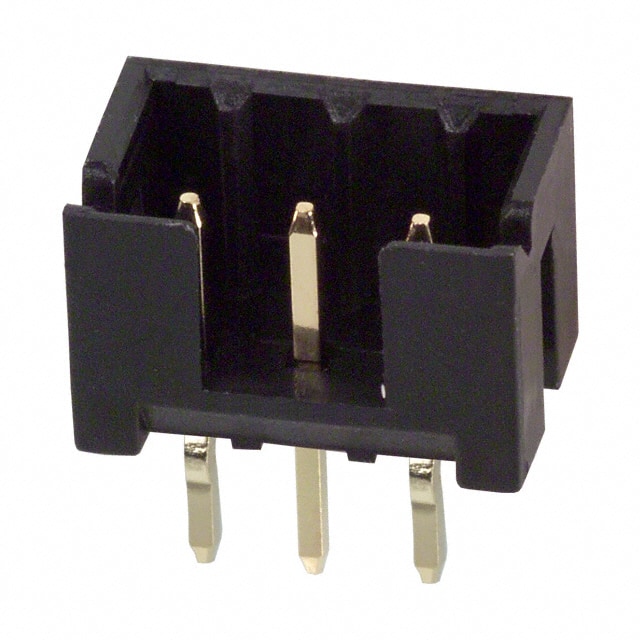

The DF3-3P-2DSA(01) is a 3-position, single-row, 2.00mm pitch shrouded header from Hirose Electric's DF3 series. It features a 4-wall shrouded design for secure mating and alignment. Contacts are male pins made of brass with 8µin gold plating. The insulation is black polyamide (nylon) with UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C. Current rating is 3A. Termination options include press-fit and solder. Mounting type is through hole. This connector is suitable for board-to-board or cable applications.
3 positions.
2.00mm (0.079").
3A.
Through hole.
-55°C to 105°C.
Gold with 8µin (0.203µm) thickness.
Yes, RoHS3 compliant.
