| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

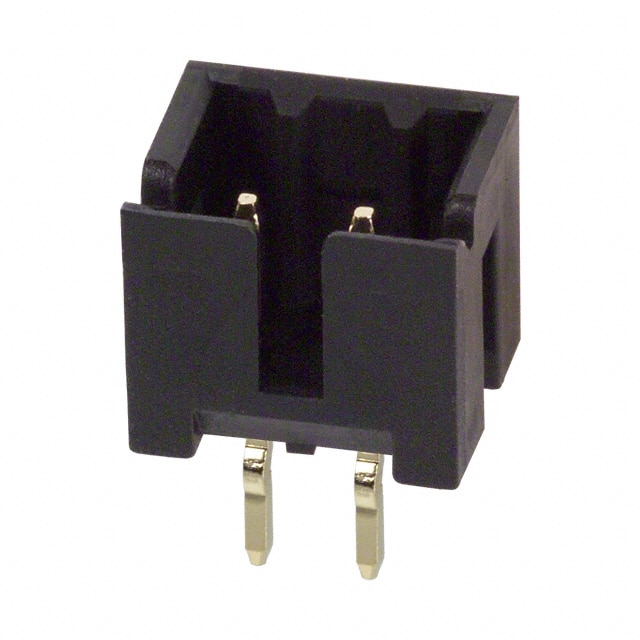

The Hirose DF3-2P-2DSA(01) is a 2-position, single-row shrouded header connector designed for board-to-board or cable-to-board applications. It has a pitch of 2.00mm and features a 4-wall shrouding for protection and alignment. The connector uses male pin contacts made of brass with a gold plating thickness of 8.00µin.
This header is rated for a current of 3A and operates over a temperature range of -55°C to 105°C. The insulation material is polyamide (nylon) with a UL94 V-0 flammability rating, and the housing is black. The overall contact length is 0.299 inches (7.60mm), and the insulation height is 5.00mm.
The connector uses a through-hole mounting style with press-fit and solder termination options. The fastening type is push-pull, making it suitable for applications requiring secure but easy mating. The contact shape is square, and the contact length is 3.10mm.
It has 2 positions.
The pitch is 2.00mm.
The current rating is 3A.
Through hole mounting.
Gold plating with 8.00µin thickness.
-55°C to 105°C.
Yes, it is RoHS3 compliant.
