| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Termination | |
| Current Rating (Maximum @ Wire Gauge 22-24 AWG) | |
| Current Rating (Maximum @ Wire Gauge: 26 AWG) | |
| Current Rating (Maximum @ Wire Gauge: 28 AWG) | |
| Pin or Socket | |
| Type | |
| Wire Gauge |

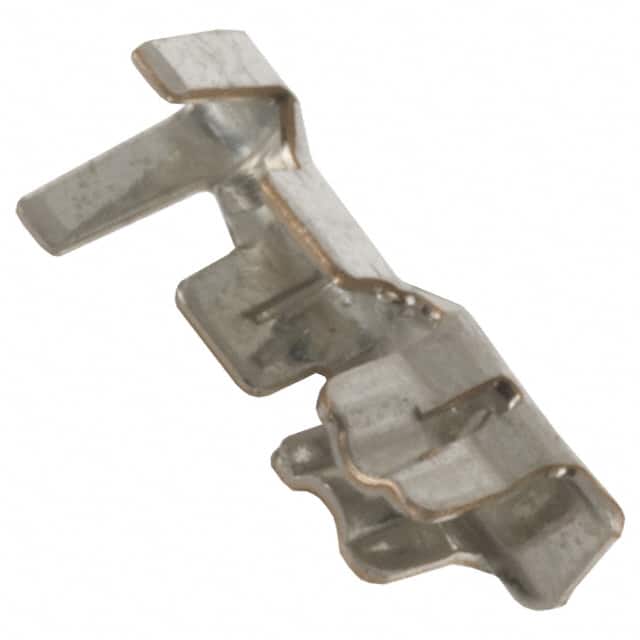

The Hirose DF3-2428SC is a stamped crimp socket contact designed for use with the DF3 series of 2 mm pitch connectors. It accommodates 24 to 28 AWG wire and features a tin contact finish for reliable conductivity.
This contact is rated for a maximum current of 3 A when used with 22-24 AWG wire, 2 A with 26 AWG, and 1 A with 28 AWG. The maximum voltage rating is 100 V AC. Contact resistance is 30 mΩ maximum, and insulation resistance is 1000 MΩ minimum.
Designed for low-profile applications, the DF3 series crimp socket achieves a mounting height of 7.5 mm. The contact is suitable for use in business equipment such as copiers and printers. It is UL (E52653) and CSA (LR95109) approved.
The DF3-2428SC supports 24 to 28 AWG wire.
The current rating depends on wire gauge: 3 A for 22-24 AWG, 2 A for 26 AWG, and 1 A for 28 AWG.
The maximum voltage rating is 100 V AC.
The operating temperature range is -30°C to +85°C.
The maximum contact resistance is 30 mΩ.
The DF3 series has a 2 mm pitch.
