| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | 1970-01-03 02:13:41 | On Request | On Request | |
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating (Maximum @ AWG#22-24) | |
| Current Rating (Maximum @ AWG#26) | |
| Current Rating (Maximum @ AWG#28) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature Range | |
| Pin or Socket | |
| Standard Package Quantity | |
| Voltage Rating | |
| Wire Gauge | |
| Withstanding Voltage |

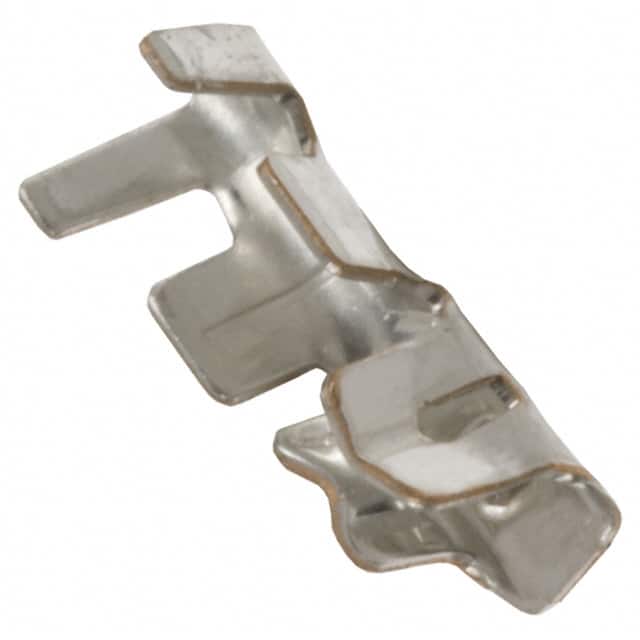

The Hirose DF3-22SC is a crimp socket contact part of the DF3 series, designed for 22 AWG wire. It features tin plating for reliable conductivity and corrosion resistance. This contact is rated for a maximum current of 3A for 22-24 AWG wires, 2A for 26 AWG, and 1A for 28 AWG, with a voltage rating of 100V AC. It operates over a temperature range of -30°C to +85°C, making it suitable for a variety of environments.
Contact resistance is a maximum of 30 mΩ, and insulation resistance is a minimum of 1000 MΩ. The withstanding voltage is 650V AC for 1 minute. The crimp termination provides secure wire attachment and is compatible with automatic crimping machines. This contact is used in the DF3 series connectors for wire-to-board connections in business equipment such as copiers and printers.
The DF3-22SC is packaged in a standard quantity of 100 pieces per bag. It is RoHS3 and REACH compliant, ensuring environmental safety. The low-profile design supports compact harness assemblies.
3A for 22-24 AWG, 2A for 26 AWG, 1A for 28 AWG.
100V AC.
-30°C to +85°C.
Crimp termination.
22 AWG (also compatible with 24, 26, 28 AWG).
Yes, RoHS3 compliant.
30 mΩ maximum.
