| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

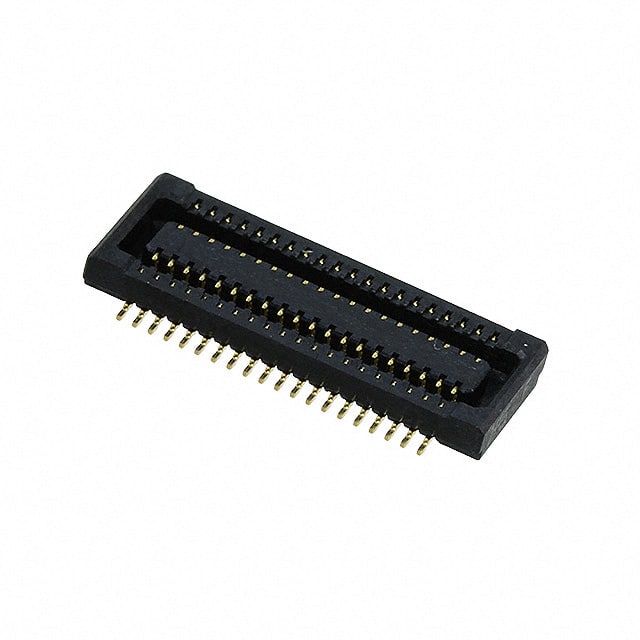

The DF23C-40DS-0.5V(51) is a surface mount receptacle connector from Hirose Electric, part of the DF23C series. It is designed for mezzanine (board-to-board) applications requiring a compact, high-density interconnect.
This connector has 40 positions arranged in 2 rows with a 0.5mm pitch, providing a reliable connection in space-constrained designs. The gold contact finish ensures low resistance and corrosion resistance. The connector has a height above board of 1.45mm and supports a mated stacking height of 1.5mm.
Surface mount termination enables efficient automated assembly. The connector is compliant with RoHS3 and REACH regulations. It is suitable for a wide range of portable and compact electronic devices where board-to-board connections are needed.
40
0.50mm (0.020")
Surface Mount
Gold
1.45mm
1.5mm
Yes, RoHS3 compliant
