| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

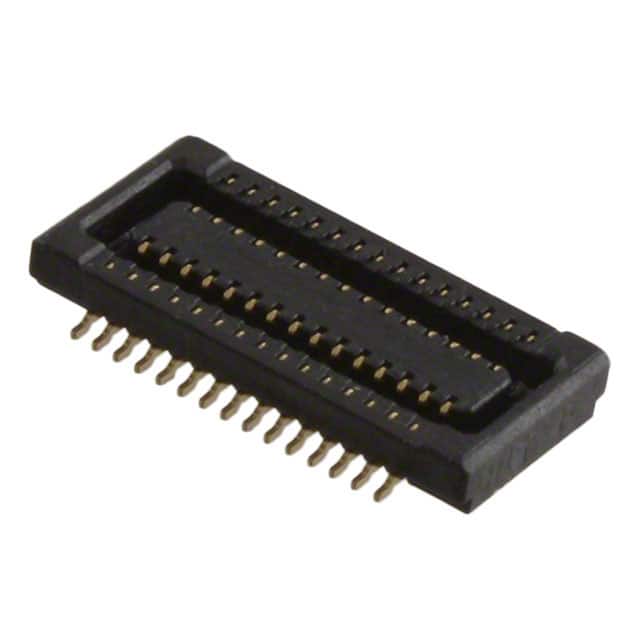

The Hirose DF23C-30DS-0.5V(51) is a 30-position receptacle connector featuring a 0.50mm pitch and dual-row configuration. It is designed for surface mount applications and offers a mated stacking height of 1.5mm, making it suitable for compact, low-profile board-to-board interconnections.
The connector uses gold-plated contacts for reliable signal integrity and is housed in a receptacle with center strip contacts. The height above board is 1.45mm, enabling dense PCB layouts. This part is RoHS3 compliant and has an MSL of Level 1 (unlimited floor life).
Typical applications include mezzanine card connections in portable electronics, communication modules, and other space-constrained devices requiring a secure, low-profile interconnect solution.
The pitch is 0.50mm.
It has 30 positions.
Surface mount.
The mated stacking height is 1.5mm.
Gold.
