| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

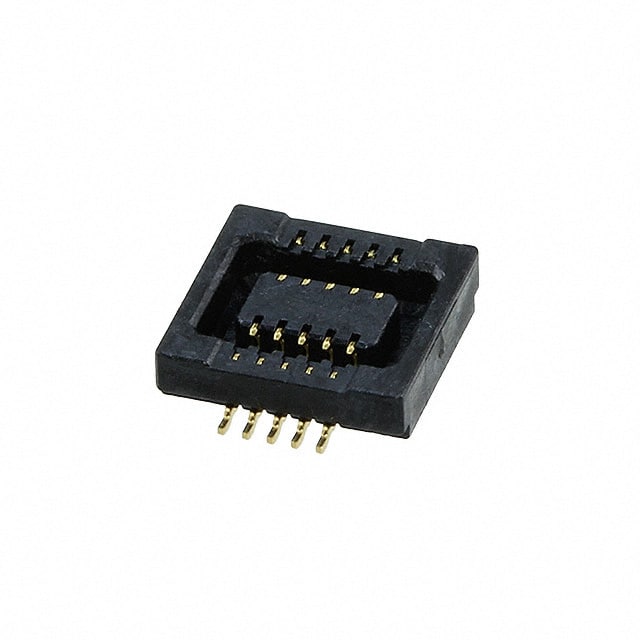

The Hirose Electric DF23C-10DS-0.5V(51) is a board to board receptacle connector from the DF23C series. It features 10 positions arranged in 2 rows with a fine 0.50mm pitch, designed for surface mount soldering. The connector has a mated stacking height of 1.5mm and a height above board of 1.45mm, making it suitable for low-profile mezzanine applications.
This receptacle uses center strip contacts with a gold contact finish, ensuring reliable electrical performance. The connector is RoHS3 compliant and has an MSL (Moisture Sensitivity Level) of 1, indicating unlimited floor life before soldering. It is also REACH unaffected.
Typical applications include compact electronic devices where space is at a premium, such as smartphones, tablets, and portable electronics. The surface mount design supports automated assembly processes.
The pitch is 0.50mm.
It has 10 positions.
It is a surface mount connector.
The mated stacking height is 1.5mm.
The contact finish is gold.
Yes, it is RoHS3 compliant.
