| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

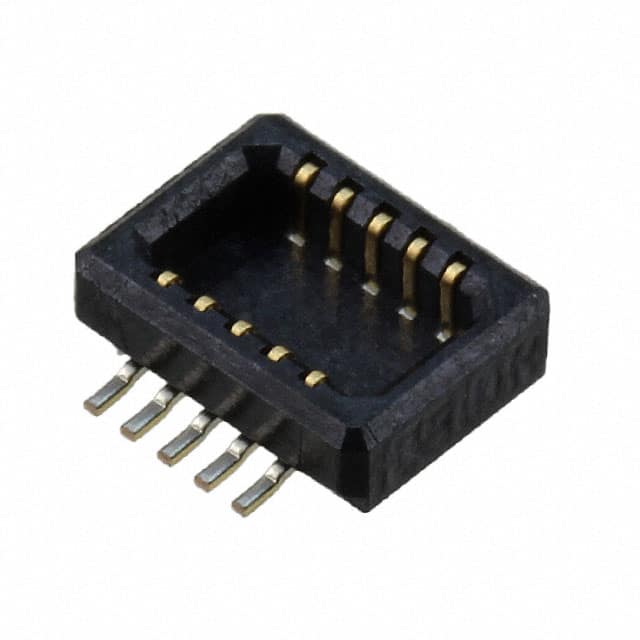

The Hirose DF23C-10DP-0.5V(92) is a mezzanine board-to-board connector plug designed for compact stacking applications. It offers 10 positions arranged in 2 rows with a fine 0.50mm pitch, enabling high-density interconnections. The connector is surface mount (SMT) compatible, with a height above board of 1.20mm and a mated stacking height of 1.5mm.
The contacts are finished in gold for reliable electrical performance and corrosion resistance. This part is part of the DF23C series from Hirose Electric, known for their space-saving designs. The connector is RoHS3 and REACH compliant, and has an MSL of 1 (unlimited floor life).
Ideal for use in compact portable electronics, mobile devices, and any application requiring a low-profile board-to-board connection. The outer shroud contact design provides secure mating and alignment.
10 positions.
0.50mm (0.020").
Surface mount.
2 rows.
Gold.
